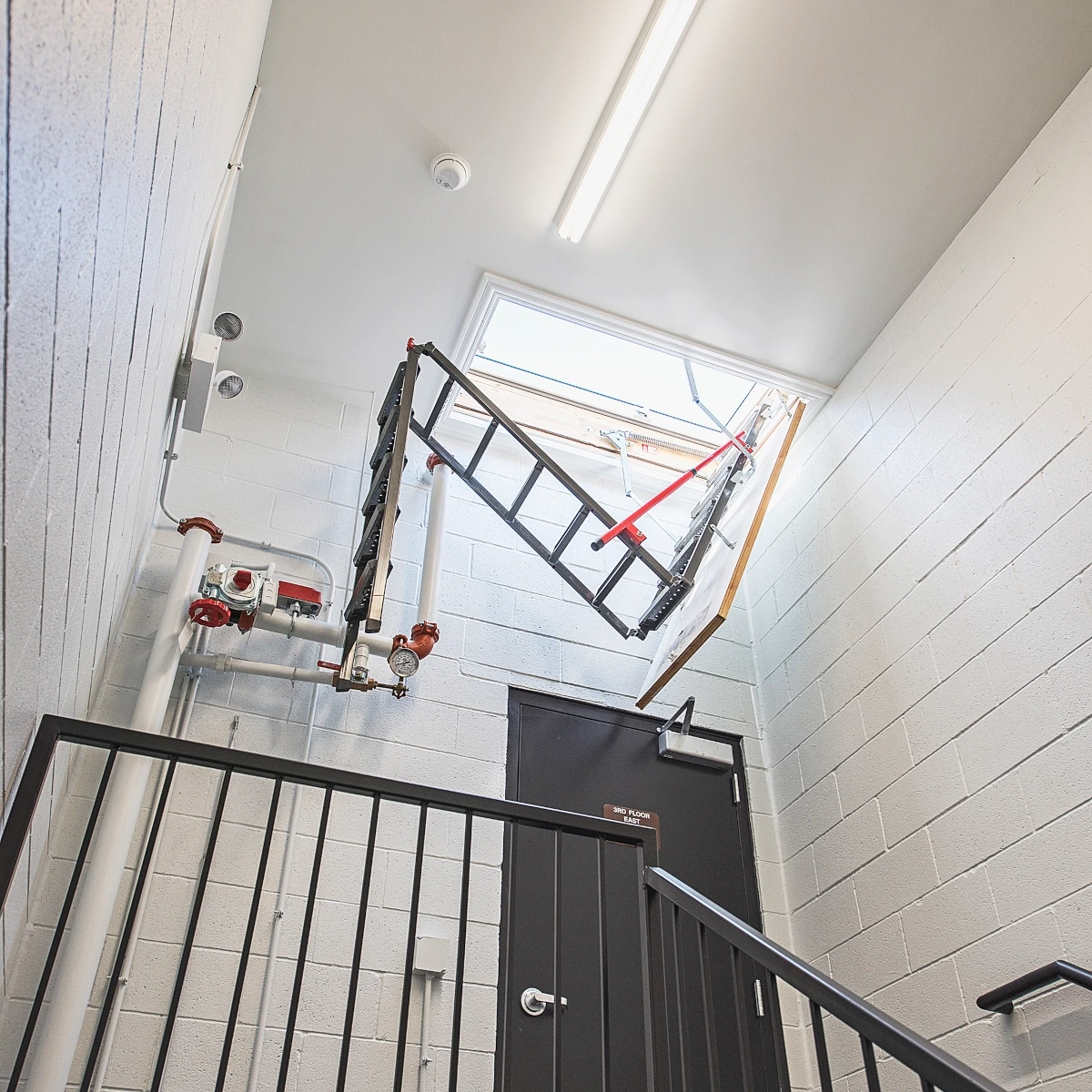

The FAKRO DRL roof hatch with LMP metal attic ladder is a practical roof access set designed for secure, insulated access to flat roofs. This set includes a DRL roof hatch in size 70 x 130 (27 1/2 in x 59 1/2 in) and an LMP three-section metal attic ladder in size 70 x 144(RO 27 1/2 in x 56 1/2 in.) The ladder is designed for ceiling heights from 9 ft 10 in to 12 ft, making this combination a practical solution for projects requiring safe and convenient access to the roof.

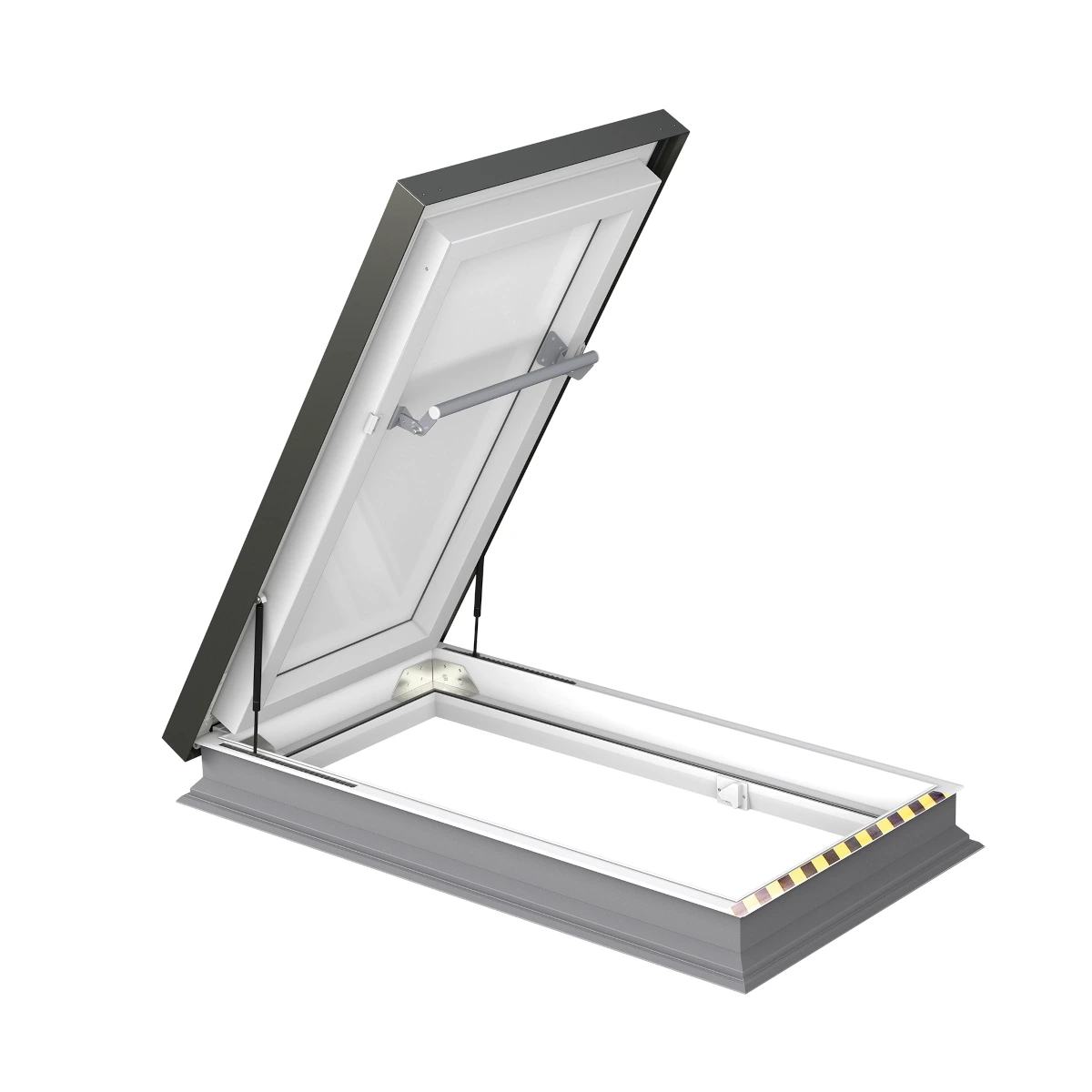

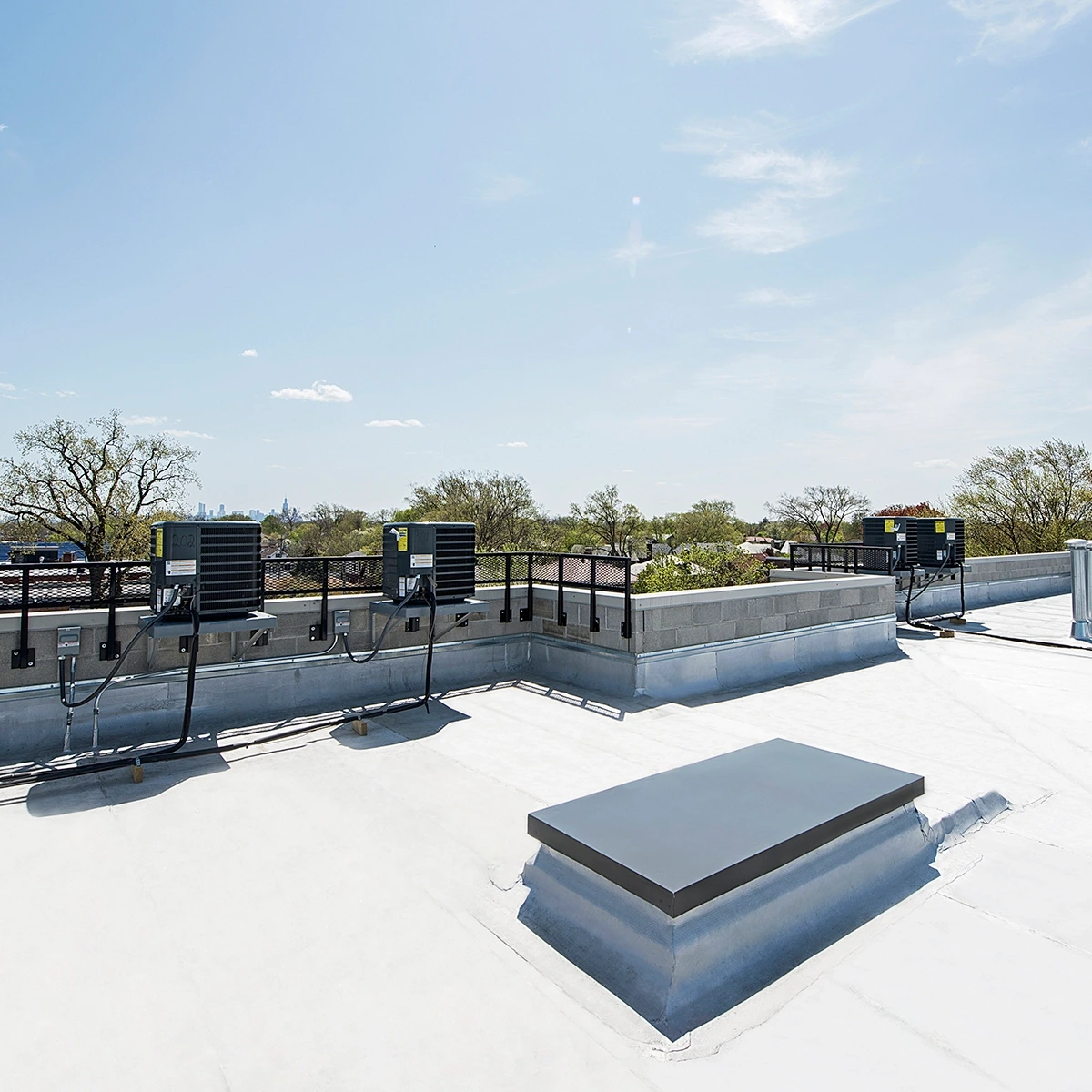

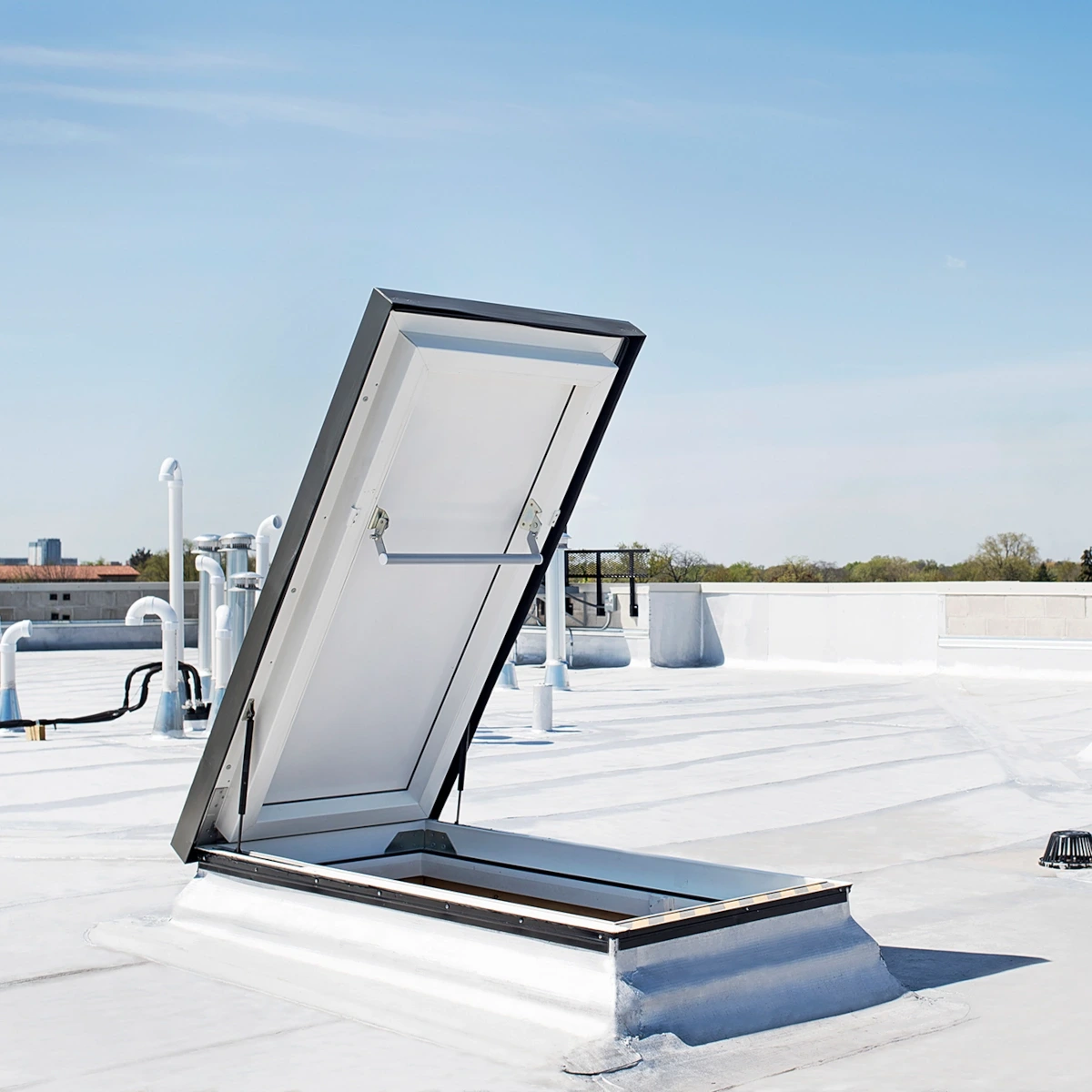

The DRL roof hatch is designed for flat roofs with a pitch between 0 and 5 degrees. It provides thermal performance with an R-value of 8.33 and features piston-assisted opening for easier operation. The hatch remains open at a 60-degree angle for convenient access to the roof. For added safety, the frame includes anti-slip tape, and the locking mechanism provides secure and reliable latching. The interior finish is white, while the exterior metal cladding is dark gray, RAL 7022. The hatch door is made with a layered PVC-XPS-PVC panel with an extruded polystyrene foam core and aluminum sheeting on top.

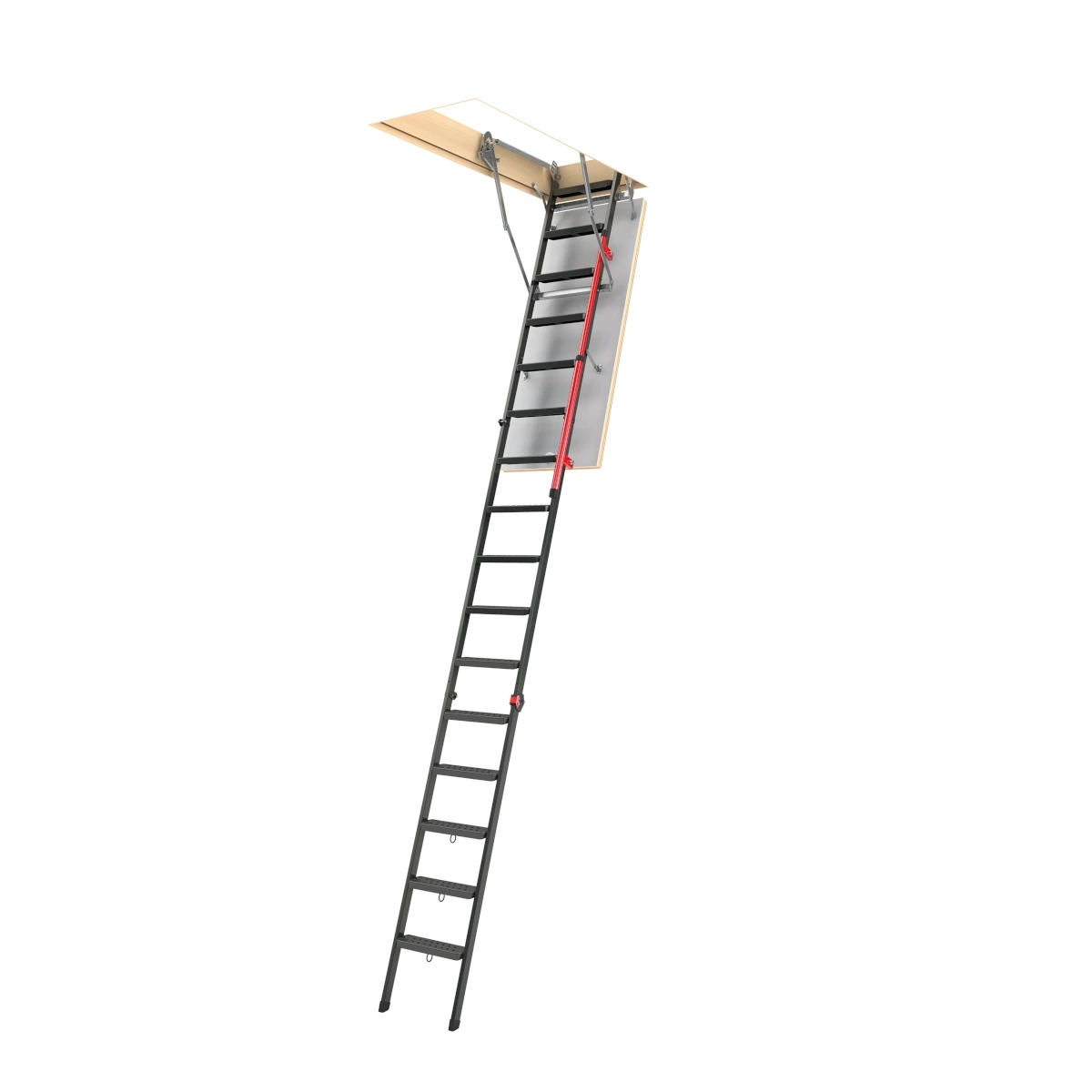

The included LMP attic ladder is supplied in a European size configuration, with the same construction as the U.S. model. It is a durable three-section metal folding ladder with non-slip metal steps, an insulated door with an R-value of 5.2, a peripheral weather seal gasket, and a handrail with a built-in unloading mechanism for improved comfort and ease of use. Its metal construction provides strength and stability, while the folding design allows the ladder to close neatly within the ceiling opening when not in use.
This set includes metric-size components.
Key Features
DRL Roof Hatch
- Size 70 x 130 (cm)(27 1/2 in x 59 1/2 in)
- Designed for flat roofs with a pitch between 0 and 5 degrees
- Thermal performance with an R-value of 8.33
- Piston-assisted opening with the hatch held open at a 60-degree angle
- Anti-slip tape on the frame for safer exit to the roof
- Secure locking mechanism for reliable closing
- White interior finish and dark gray exterior metal cladding, RAL 7022
LMP Attic Ladder
- Size 70 x 144 (cm)
- Required rough opening: 27 1/2 in x 56 1/2 in
- Designed for ceiling heights from 9 ft 10 in to 12 ft
- European size configuration with the same construction as the U.S. model
- Must be installed horizontally
- Non-slip metal steps
- Handrail with built-in unloading mechanism
- Insulated door with an R-value of 5.2
- Peripheral weather seal gasket
What's Included
- FAKRO DRL roof hatch
- FAKRO LMP metal attic ladder
- Roof hatch installation kit with screws and termination bar
- Opening rod
- Installation manuals
Additional Information
- DRL roof hatch size: 70 x 130 cm (27 1/2 in x 59 1/2 in)
- LMP attic ladder size: 70 x 144 cm
- LMP attic ladder required rough opening: 27 1/2 in x 56 1/2 in
- Reference technical drawing available for DRL and LMP configuration
Warranty
- DRL roof hatch: 5-year warranty against defects in materials and workmanship under normal use and service
- DRL gas springs: 2-year warranty
- LMP attic ladder: 2-year warranty
