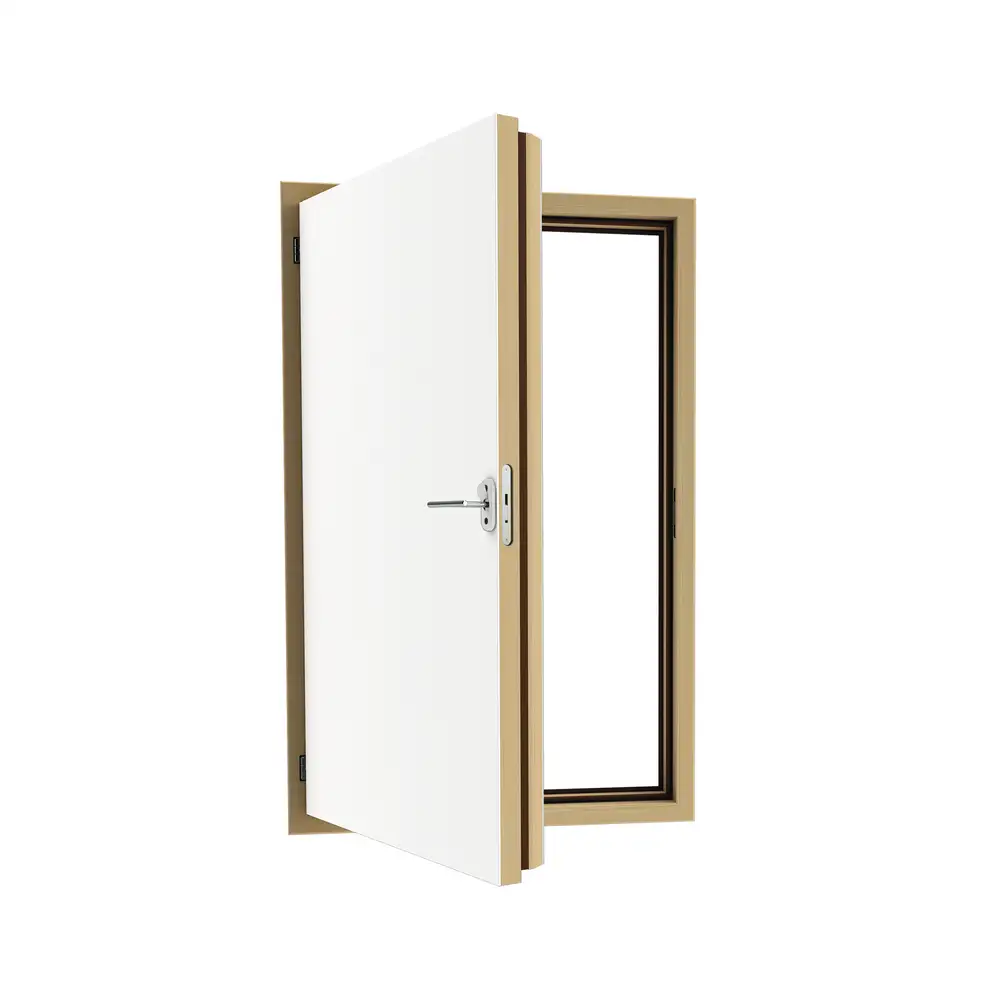

The Fakro DWF60 Knee Wall Access Door offers exceptional fire resistance and thermal insulation, providing a safe and efficient solution for accessing non-habitable spaces located behind knee walls.
Key features of the DWF60 Knee Wall Access Door include:
- Fire Resistance: Certified for 60 minutes (EI1/EI2=60 as per EN13501-2), ensuring enhanced fire safety.
- Thermal Insulation: Offers an R-value of 12, effectively minimizing heat transfer.
- Insulated Door: 3-3/8" thick door panel finished with a clean white surface on both sides.
- Triple Seal System: Features a perimeter rubber seal, an intumescent fire seal, and an additional perimeter seal for superior airtightness.
- Universal Installation: Can be installed with left or right swing directions to suit your needs.

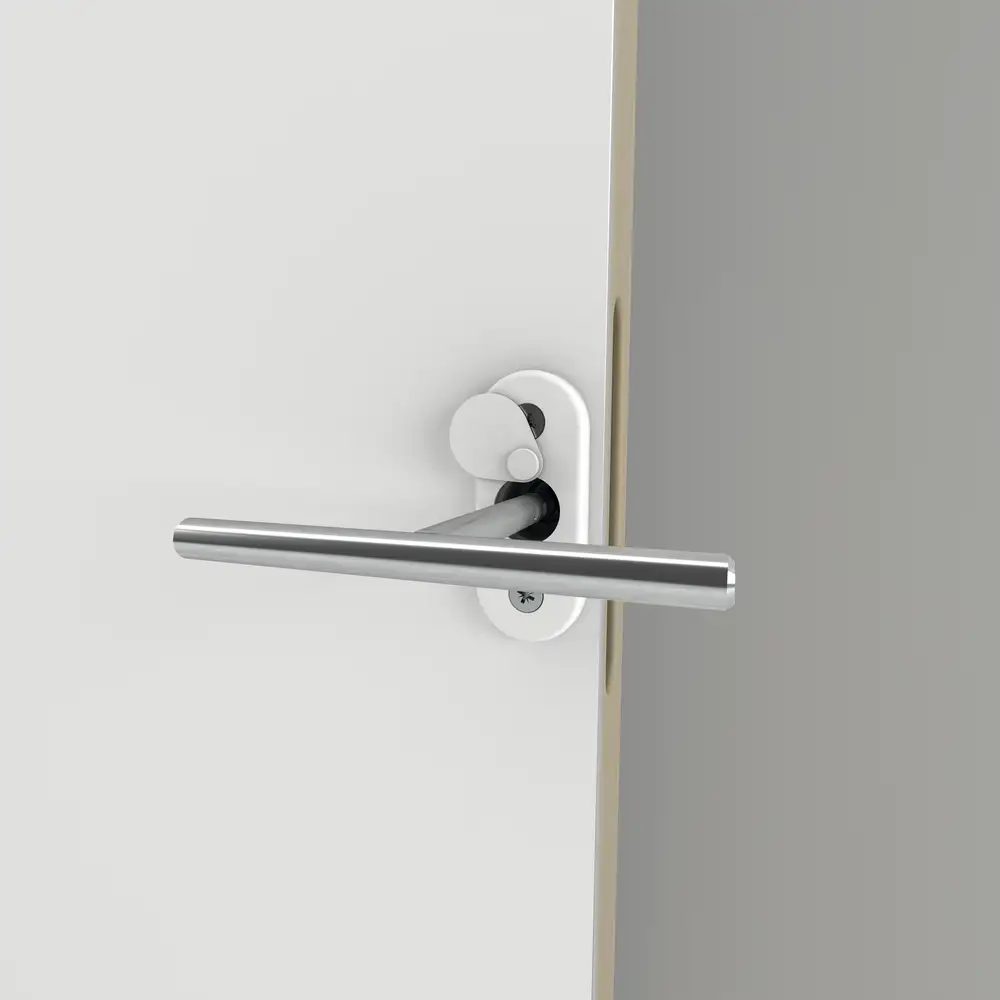

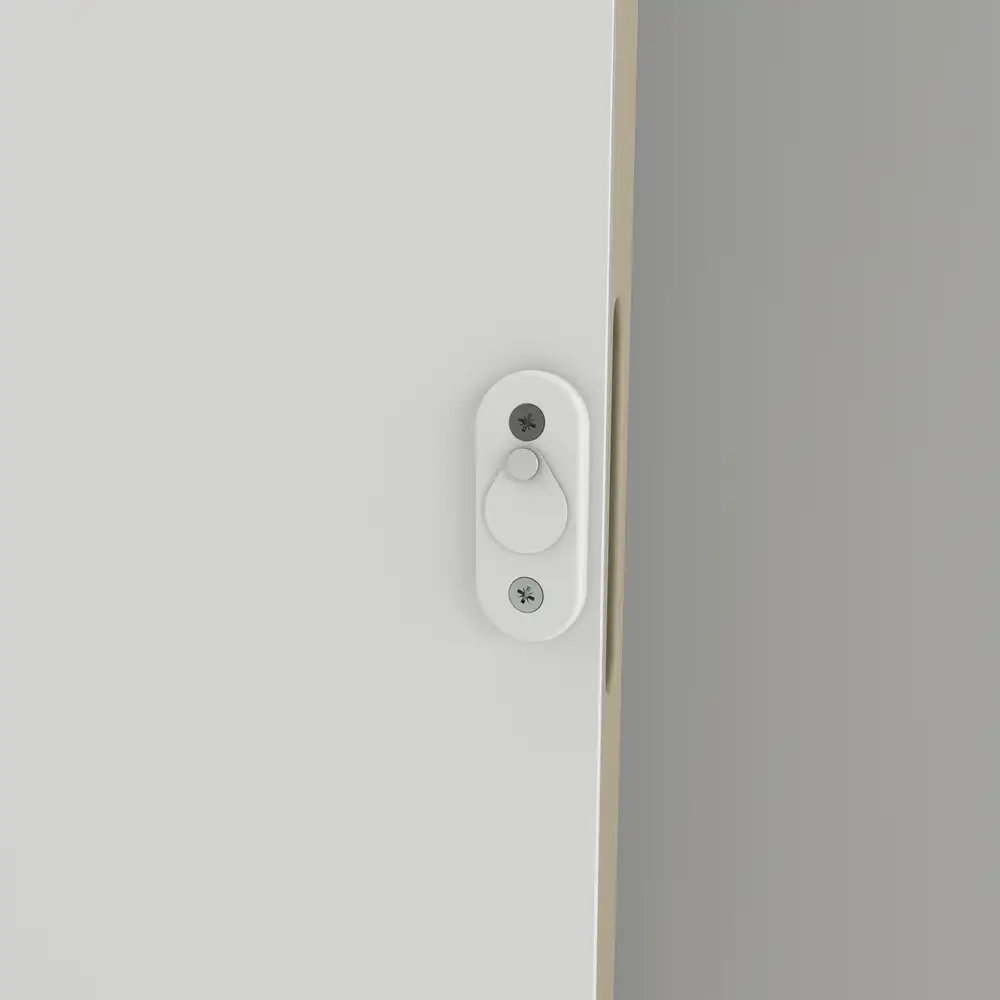

- Removable Handle: Equipped with a removable handle for added flexibility during installation and operation.

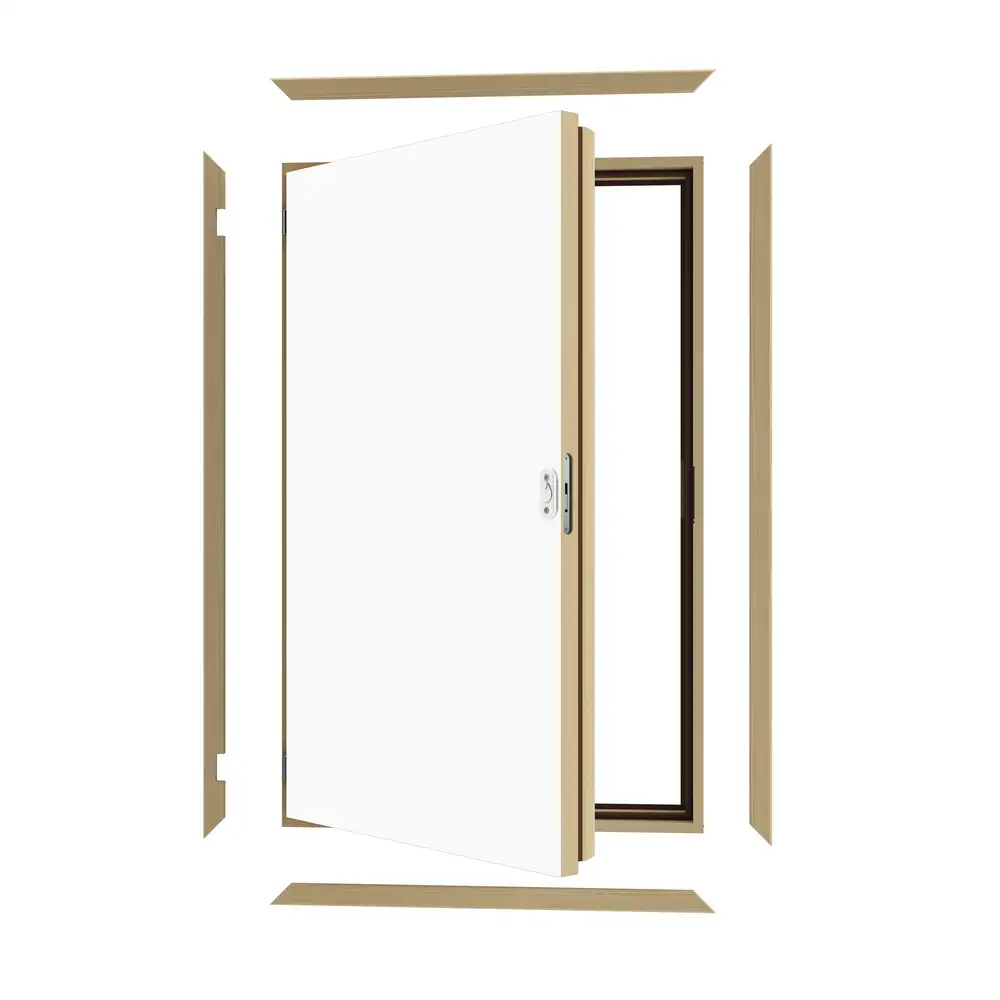

- Elegant Finish: Comes with a 1-3/8" wide unpainted natural wood trim kit for a refined appearance.
This model is pre-assembled and ready for installation into a framed rough opening. Proper insulation between the door frame and rough opening is required. Backed by a 3-year warranty, offering peace of mind for your project.
Compatibility:
| DWF60 Knee Wall Access Door Dimensions | 21"x31" | 27"x35" |
| Rough opening - width | 21 1/2" | 27 1/2" |
| Rough opening - height | 31 1/4" | 35 1/4" |
| Outside frame dimensions - width | 21" | 27" |
| Outside frame dimensions - height | 31" | 35" |
| Internal frame dimensions - width | 18 7/8” | 24 13/16” |
| Internal frame dimensions - height | 28 3/4” | 32 5/8” |
