PREVIOUS MODEL – FINAL SALE – NO RETURNS

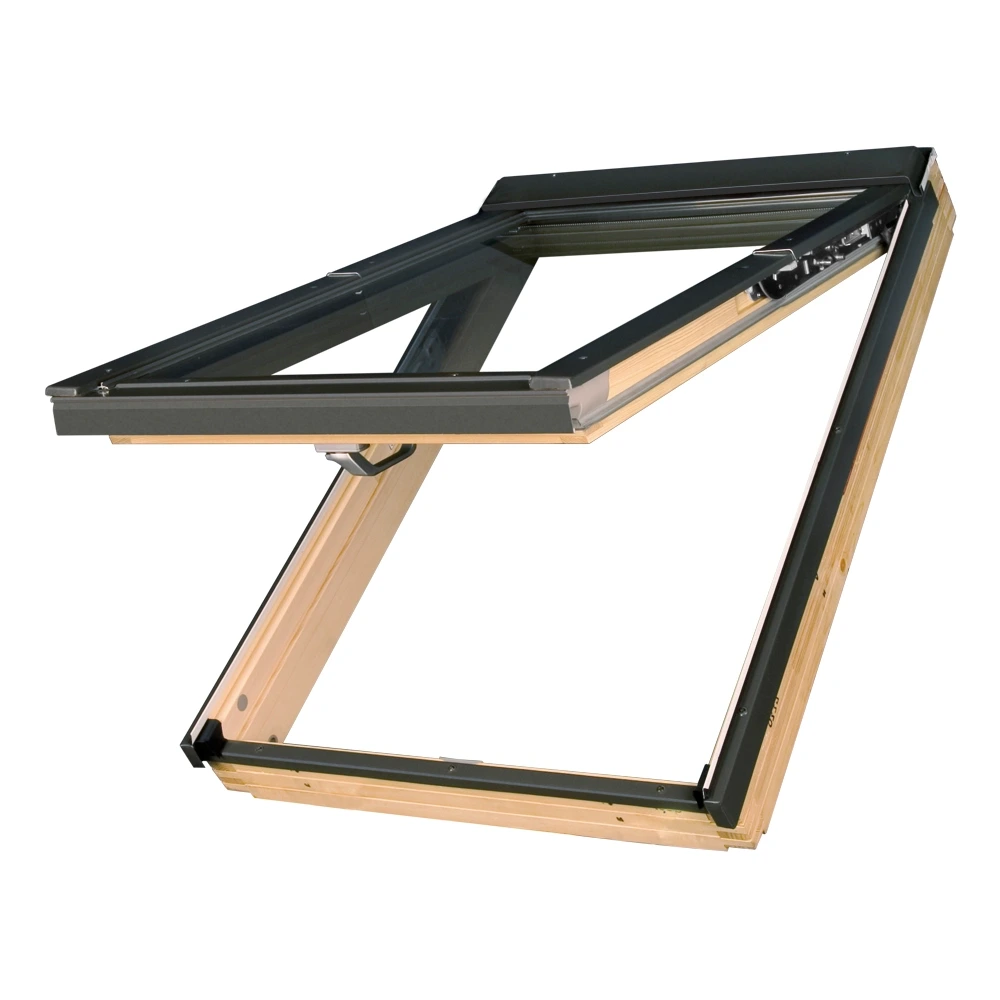

FPP-V P2 53"×63" Roof Window with EBV-P Flashing – Top-Hung and Center-Pivot for Standing Seam Metal Roofs
Product Overview
The FPP-V P2 combines two opening functions in one window: top-hung (opens upward up to 35°) for a wide, unobstructed view and headroom, and center-pivot (rotates 180°) for safe cleaning from inside. Ideal for attic rooms and lofts where the window is installed within arm’s reach for daily use and ventilation.
This version includes the EBV-P flashing system, designed for standing seam metal roofs. The window mounts on brackets, allowing it to sit deeper in the roof for better thermal performance and a cleaner appearance.
Dimensions
- Nominal size: 53"×63"
- Exterior frame: 52 5/8" × 63 1/16"
- Recommended rough opening: 53 3/4" × 64")
- Roof pitch: 15°–55°
What’s Included
- FPP-V P2 roof window – size 134×160
- EBV-P flashing for standing seam metal roofs
- Mounting brackets and hardware
Main Features

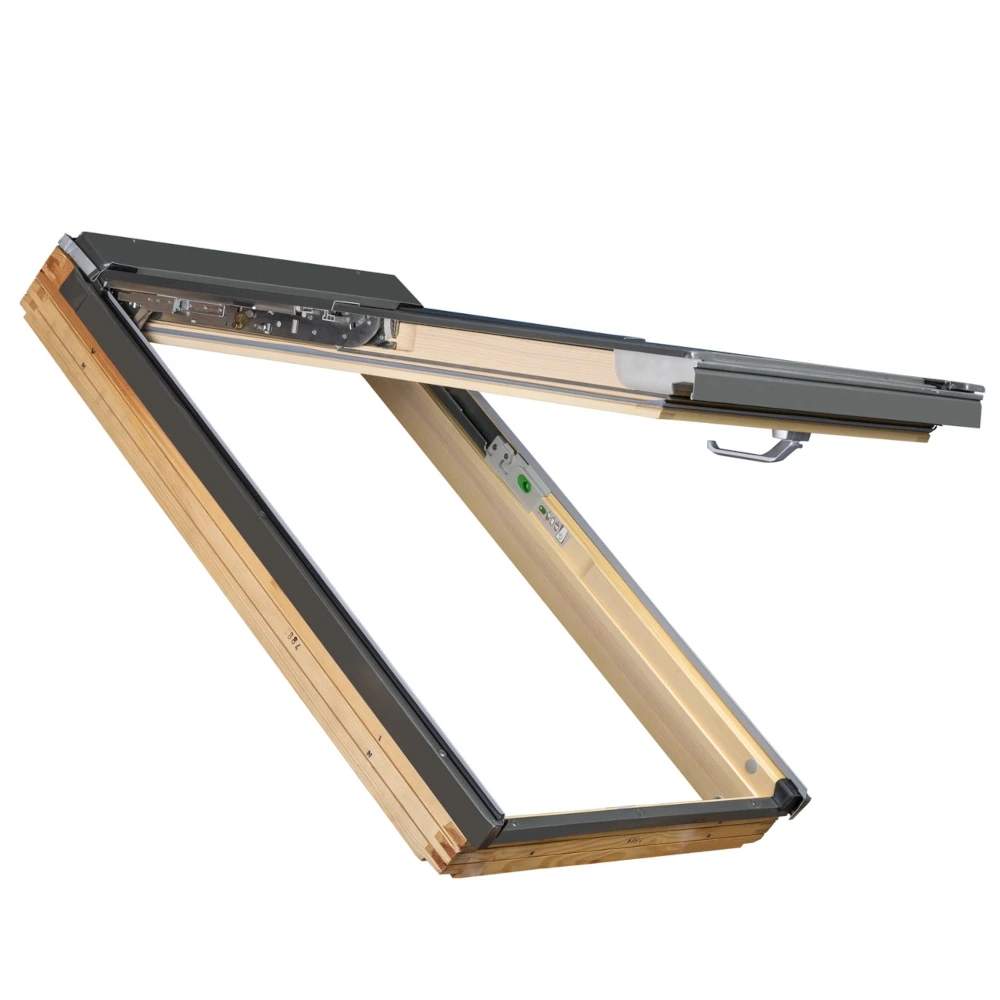

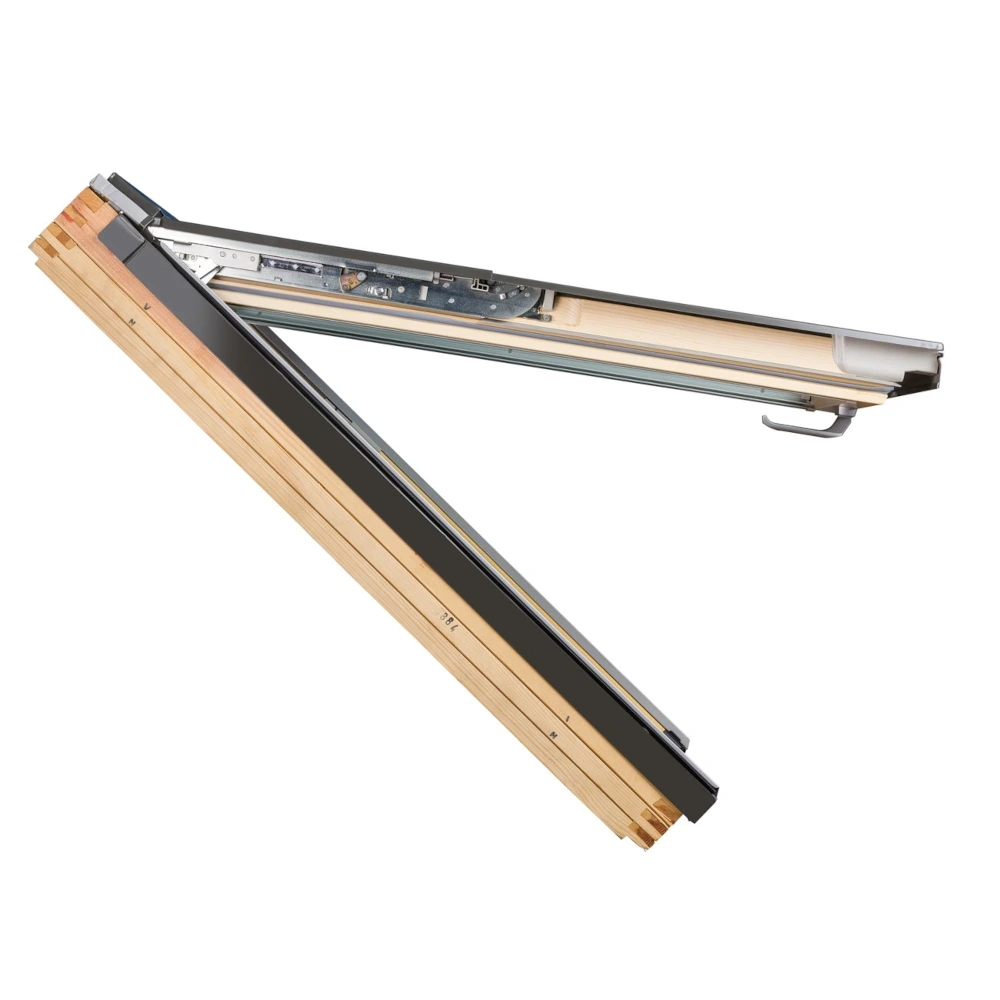

- Dual-function opening: top-hung to 35° and center-pivot for easy operation and cleaning
- P2 safety glazing: laminated inner pane increases impact resistance
- Energy-efficient glazing:
Glazing U-factor: 0.19 BTU/(h·ft²·°F) (≈ 1.08 W/m²K)
Window U-factor: 0.23 BTU/(h·ft²·°F) (≈ 1.31 W/m²K) - topSafe reinforcement: enhanced resistance to forced entry
- Bracket-mounted installation: deeper window position for better insulation and roof integration

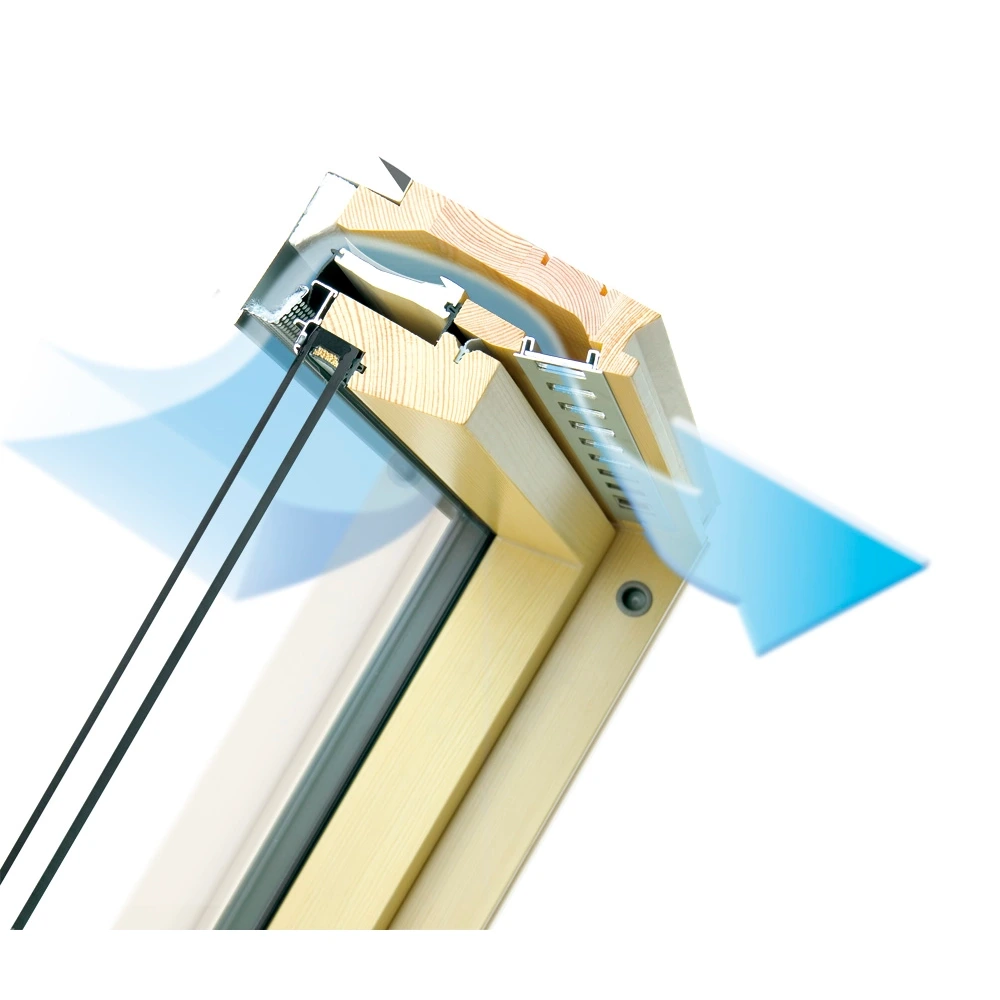

- V40P air inlet: automatic pressure-sensitive vent provides balanced airflow
- Durable, exterior aluminum cladding
Flashing Details
The EBV-P flashing ensures a watertight seal with standing seam metal roofing systems. It is installed during the roofing phase as a separate component.
Recommended Use
Perfect for finished attic spaces and lofts where the window is easily accessible. It enhances natural light, airflow, and cleaning convenience in residential sloped roofs.
