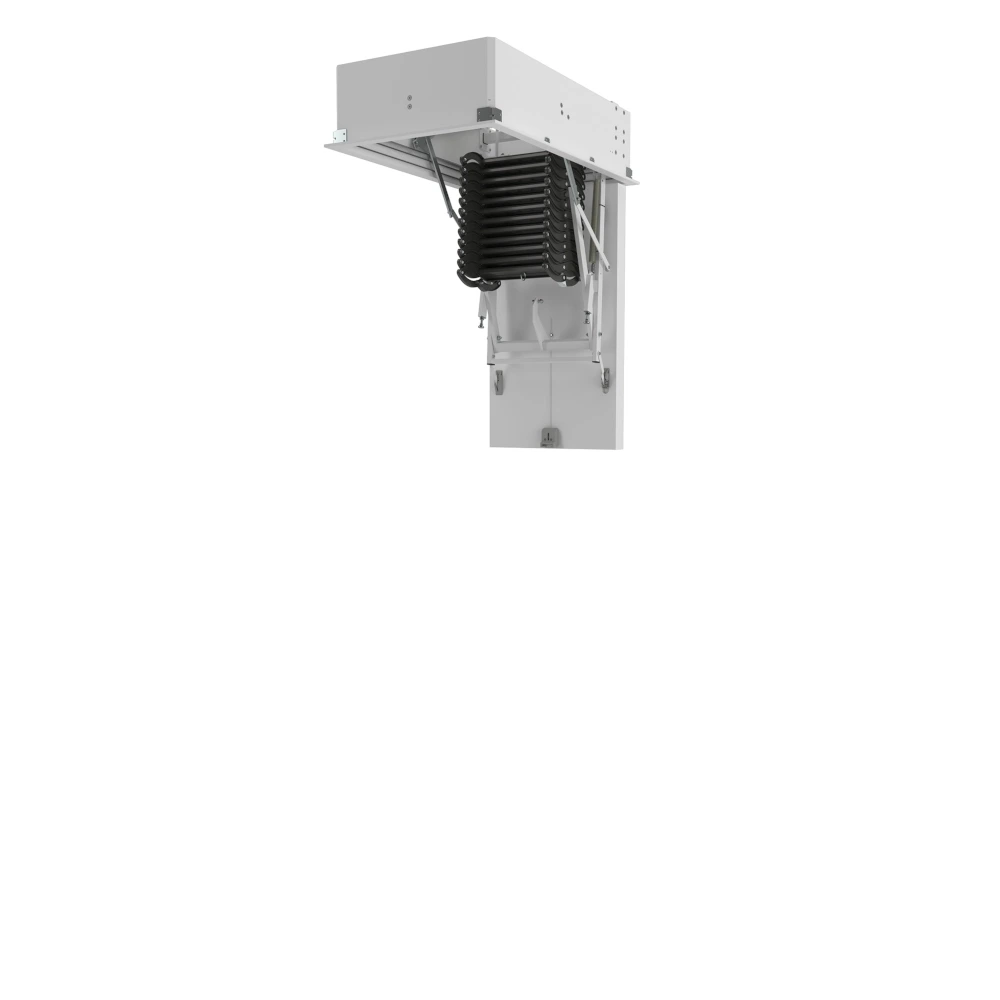

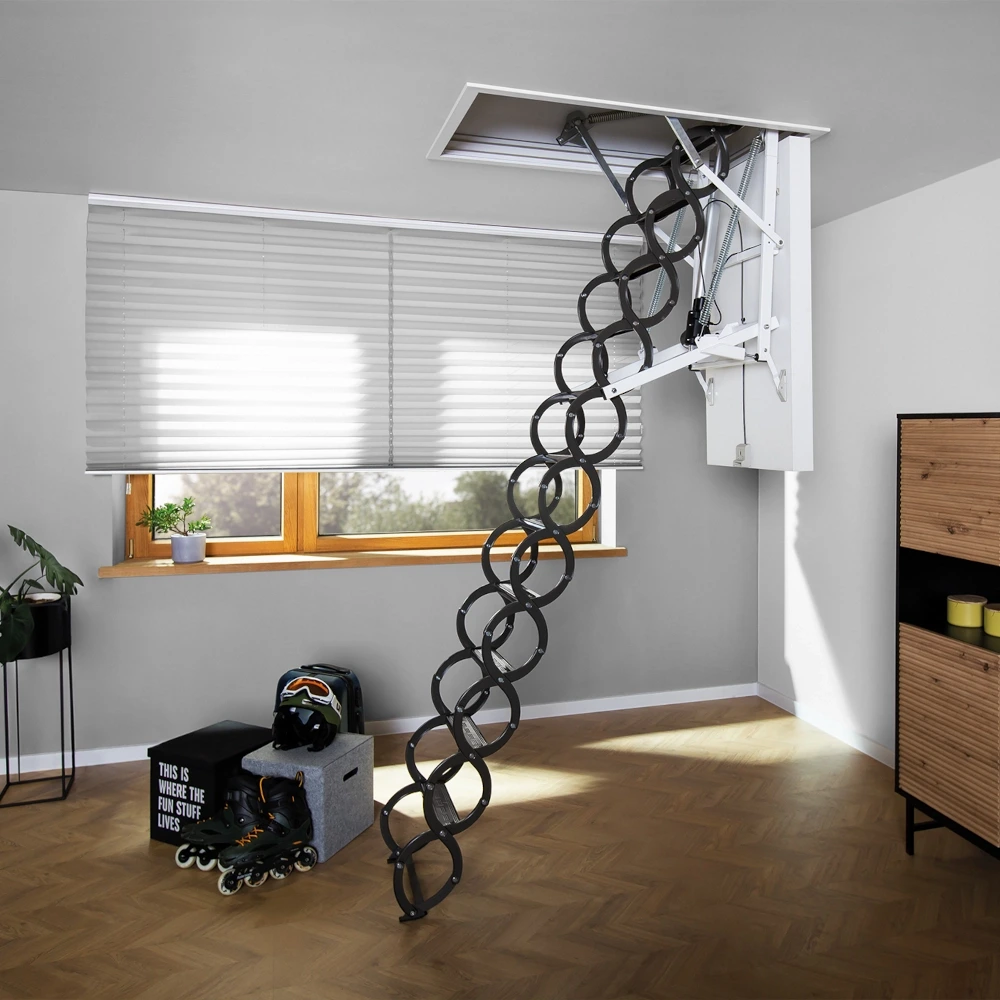

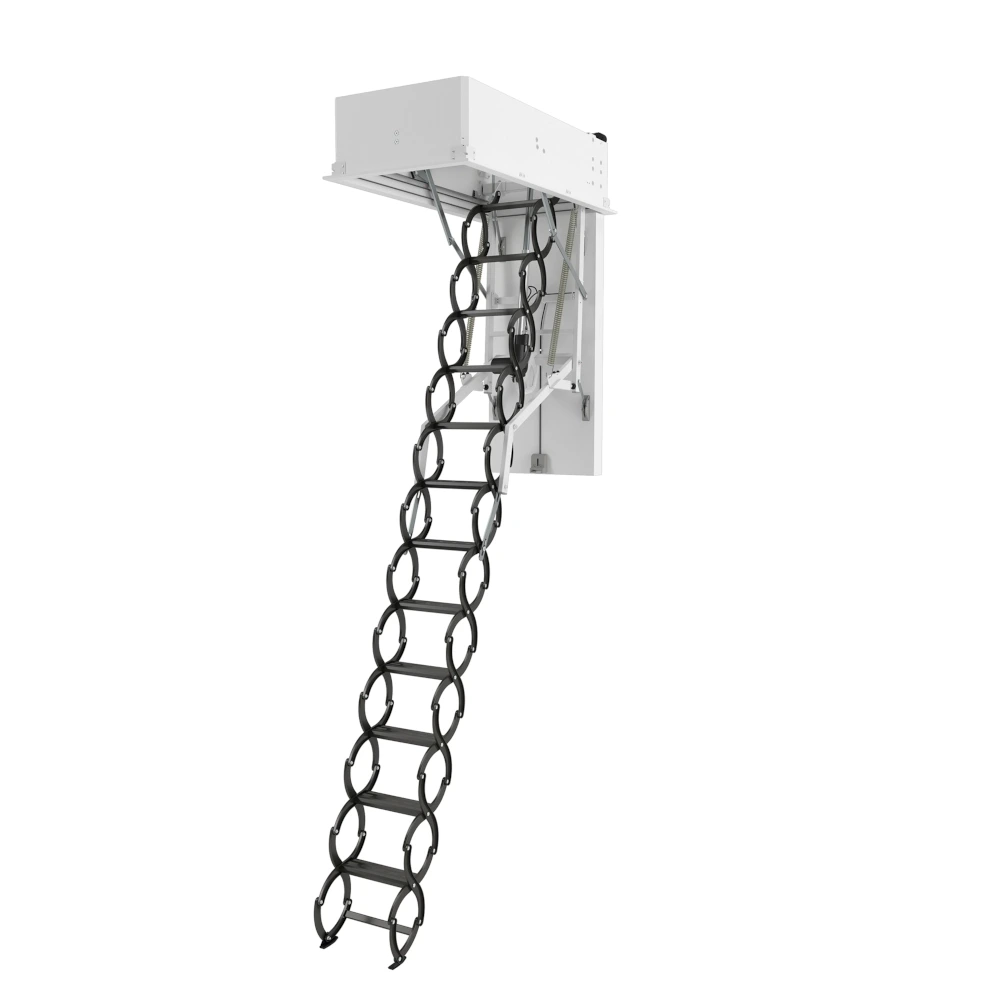

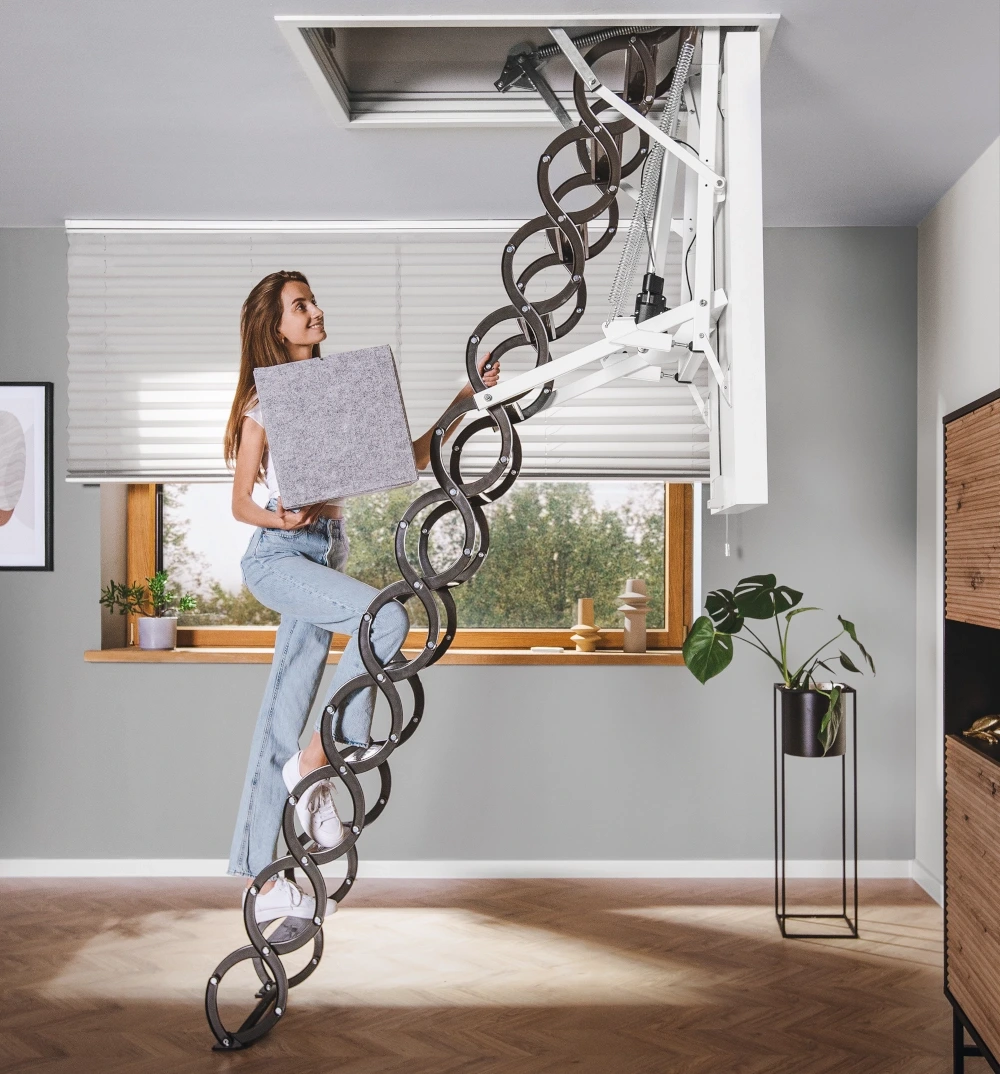

LET Electric Attic Ladder with Z-Wave Control is an electrically operated scissor-style attic ladder designed for safe and convenient access. The ladder opens and closes automatically and allows length adjustment by adding or removing steps. It includes an insulated white hatch, non-slip steel steps, installation brackets, and factory-installed metal trim.
The ladder is equipped with the ZWMS Z-Wave control module, allowing both wired and wireless operation. It can be controlled using the included ZRHS remote or a wall-mounted switch.
The insulated hatch and triple weather seals help reduce heat loss, while the steel ladder construction provides a 330 lbs load capacity.
Key Features
- Electric automatic open and close function
- Includes ZWMS Z-Wave module
- Controlled using ZRHS remote and wall switch
- Adjustable ladder length with removable steps
- Steel scissor ladder design with non-slip steps
- Triple weather seals for improved airtightness
- Factory-installed metal trim
- Installation brackets included

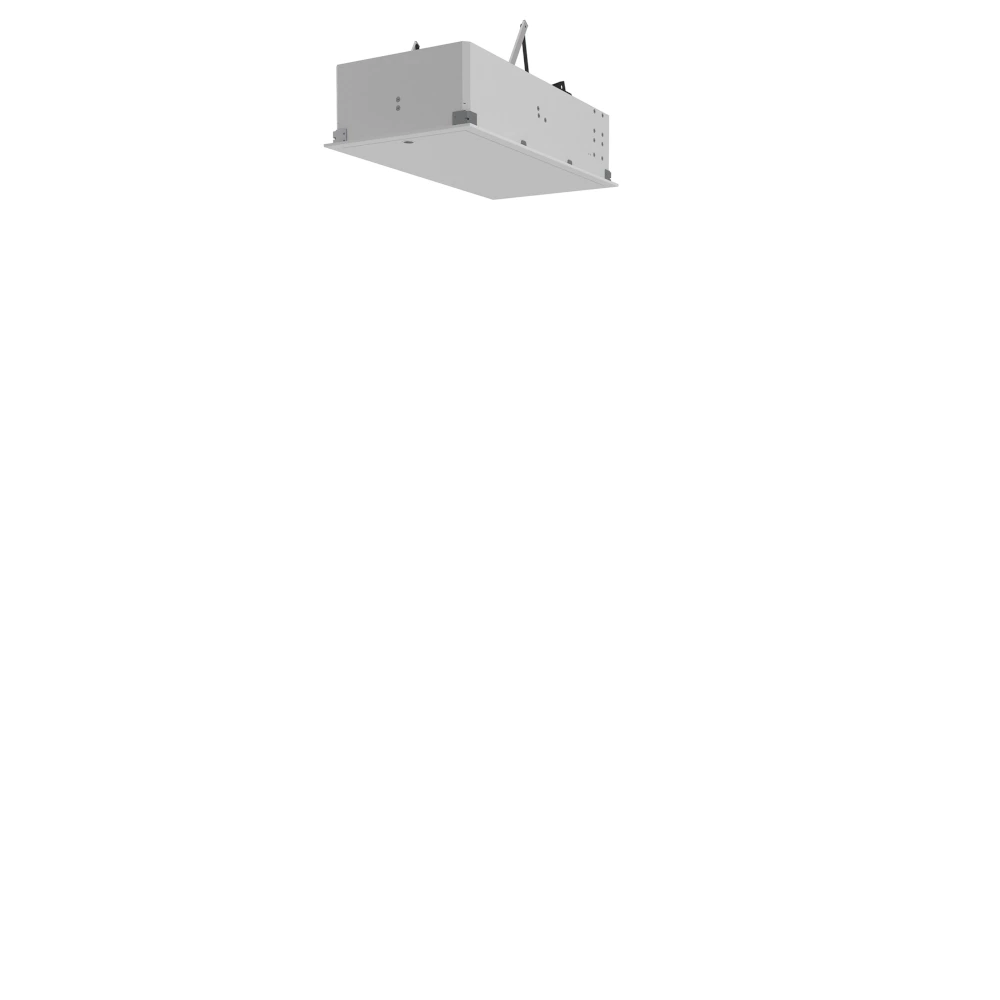

- Insulated white hatch
- R-value: 12.5
- 330 lbs weight capacity

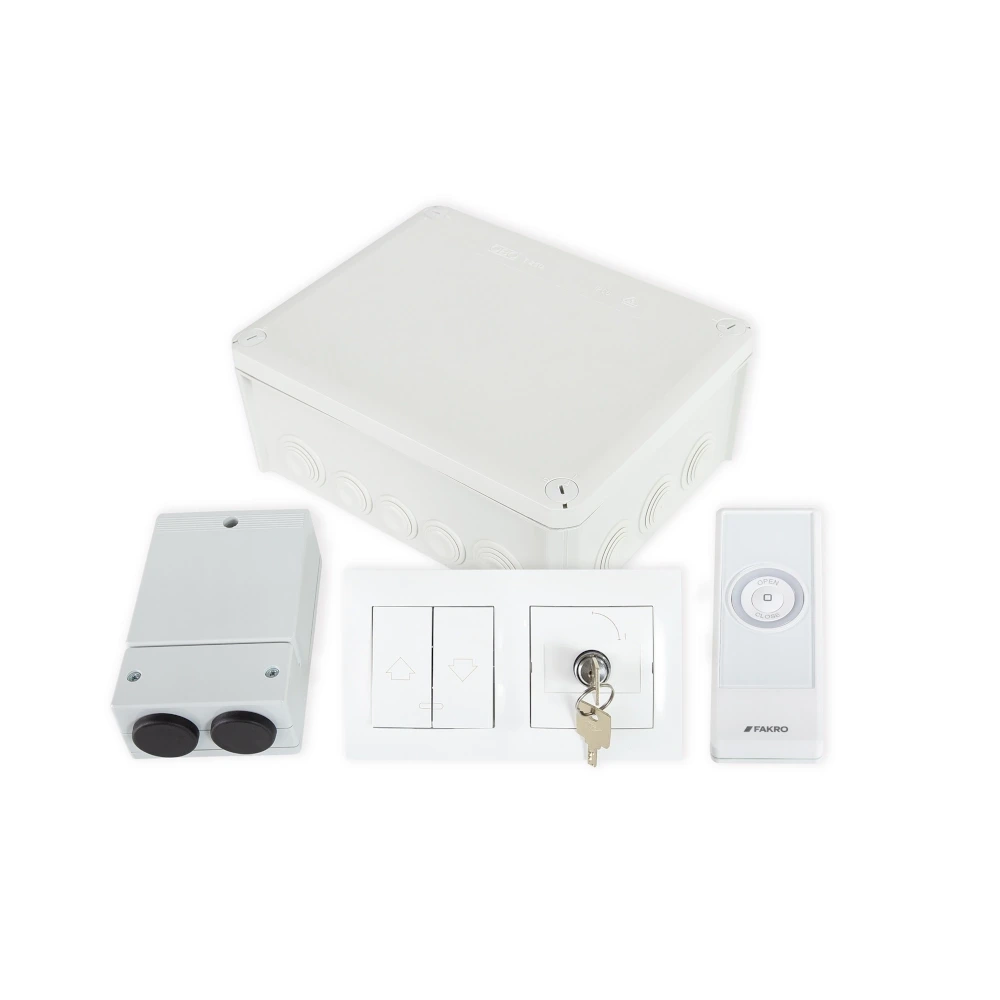

Included Components
- Attic ladder
- ZWMS Z-Wave module
- ZRHS wireless remote
- Wall-mounted switch
- Installation brackets
- Factory-installed metal trim
| LET DATA CHART | |||
| Rough opening | 25" x 55" | ||
| Frame height | 11 ½" | ||
| Folded ladder height | 23 ⅝" | ||
| Outside frame dimensions | 24 ⅞" x 54 ¾" | ||
| Outside frame dimensions with trim | 26 ½" x 56 ⅜" | ||
| Inside frame dimensions | 22 ⅞" x 52 ¾" | ||
| Frame height | 11 ¼" | ||
| Oryginal setup | With 1 step removed | With 2 steps removed | |
| Ceiling Height | 8' 10 ⅜" – 9' 6 ⅛" | 8' ⅜" – 8' 10 ⅜" | 7' 4 ⅝" – 8' ⅜" |
| Projection | 64" | 61 ½" | 58" |
| Landing sprace | 62 ¾" – 58 ½" | 58 ¼" – 53 ⅛" | 53 ⅛" – 49 ¼" |
