LWP 25x54 – For Ceiling Heights from 7'10" to 10'3" – Previous Model

PREVIOUS MODEL – FINAL SALE – NO RETURNS

This is the previous generation of the LWP insulated attic ladder. The product is new and fully functional, but has been replaced in our current lineup by an updated model with adjustable ladder ends. Limited quantity available.

Product Overview:

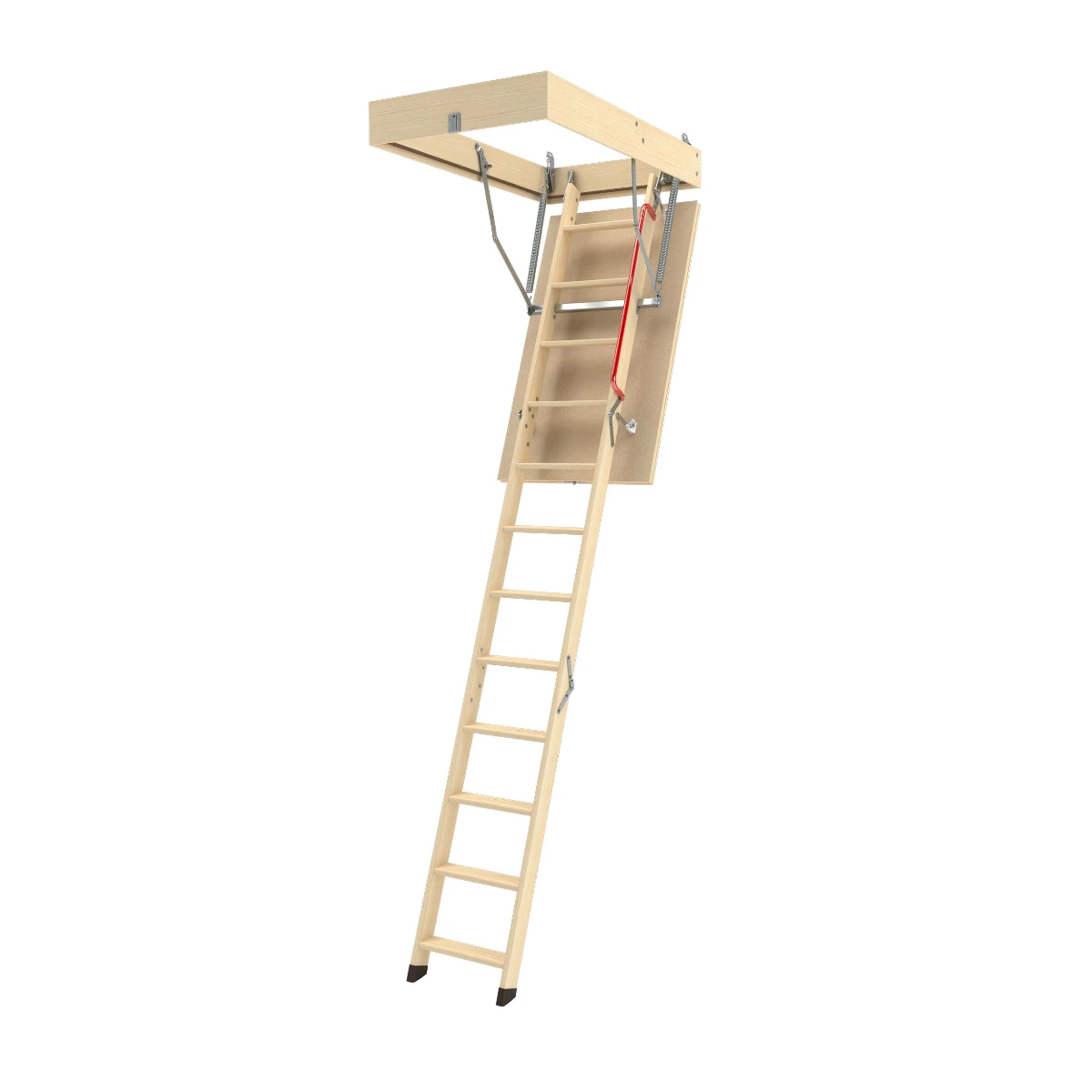

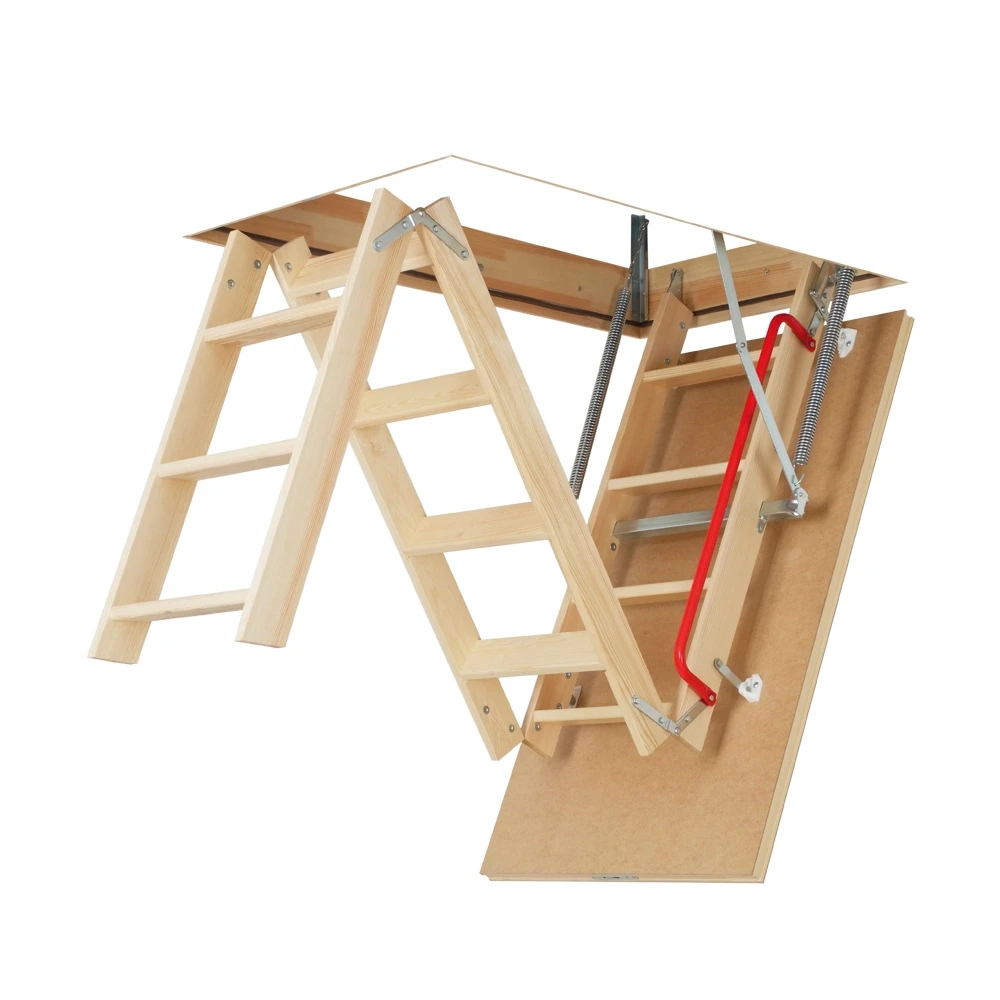

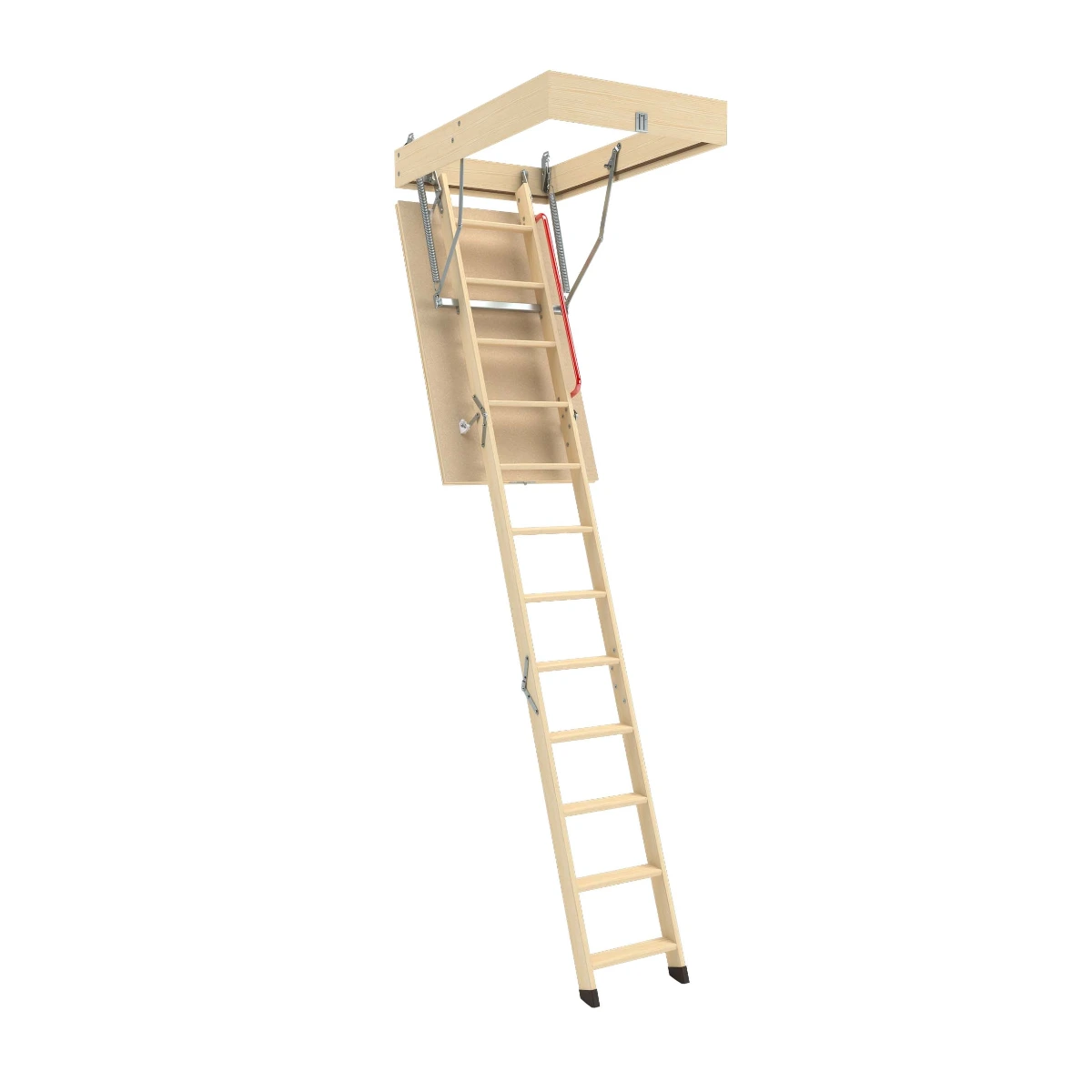

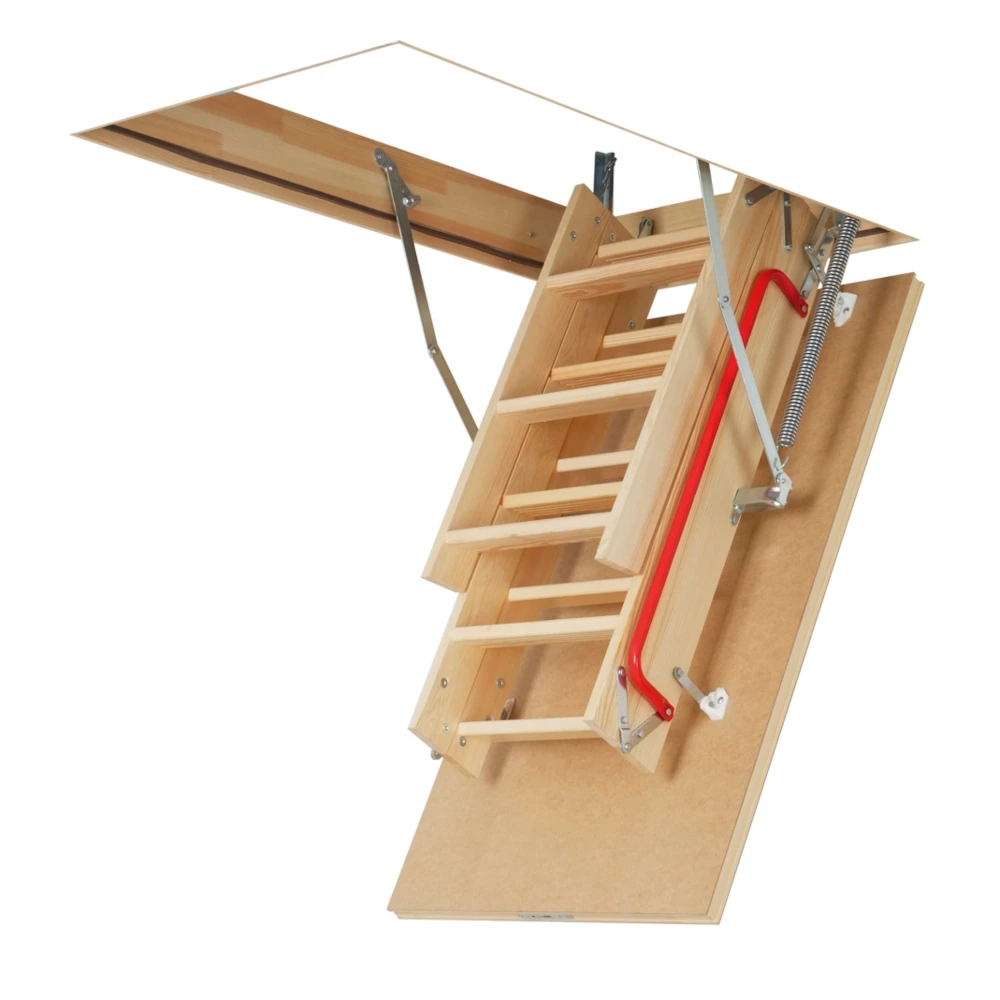

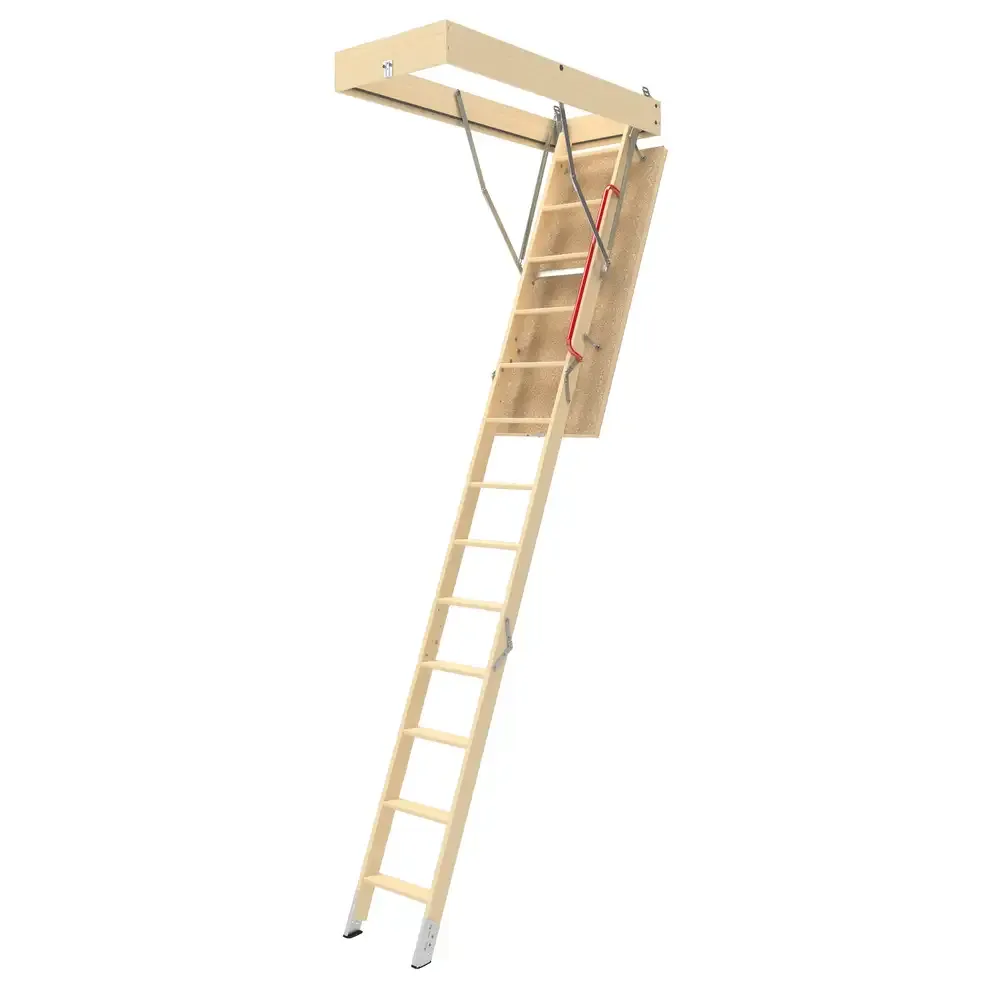

The LWP attic ladder is a folding wooden ladder designed to provide safe and convenient access to attic spaces. It offers reliable operation for residential installations and eliminates the need for a permanent staircase.

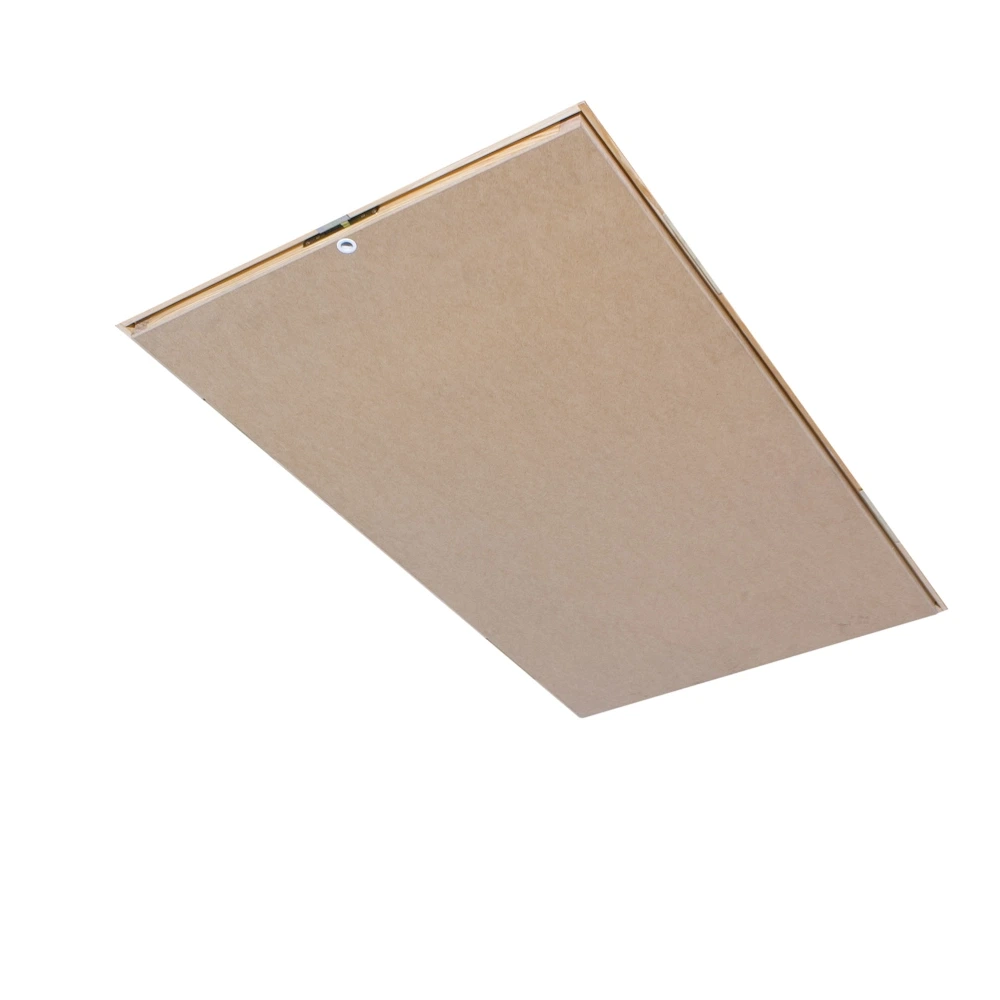

• Insulated hatch: Sandwich construction, approx. 1⅜” thick (thermal insulation approx. 1⅛”). The hatch can be painted to match the ceiling.
• Solid pinewood construction: Frame and ladder made of pinewood.
• Weather seal: Perimeter gasket improves insulation performance.
• Non-slip steps: Steps with anti-slip profile for safe climbing.
• Handrail included: One red metal handrail for stable ascent and descent.
• Weight capacity: 300 lbs.
• Thermal rating: R-value 5.7.

Included Components:

• Pre-assembled attic ladder
• Red metal handrail
• Opening rod

Size Details (25” x 54”):

• Recommended ceiling height: 7’10” – 10’1”(10'3" with included ends)
• Rough opening: 25” x 54”
• Outside frame dimensions: 24½” x 53½”
• Internal frame dimensions: 23” x 51¾”
• Projection: 72”
• Landing space: 64”
• Folded ladder height: 10¾”
• Board movement after opening: 1¼”
• Frame height: 5½”

Compatible Accessories (sold separately):

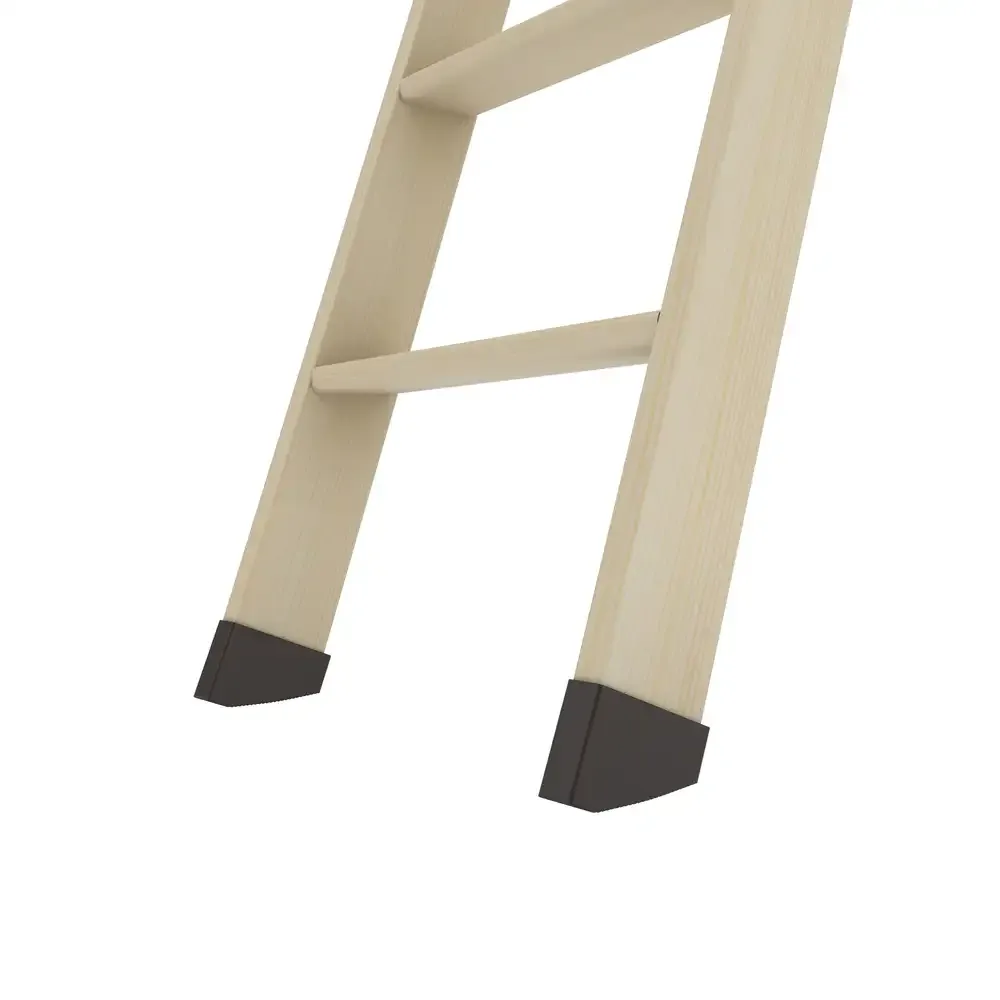

• LXS plastic ends – standard floor protection caps.
• LXS-W adjustable metal ends with rubber caps – allow minor ladder length adjustment and provide improved floor protection.
• LXH additional handrail
• LXB-U balustrade (attic-side safety railing)

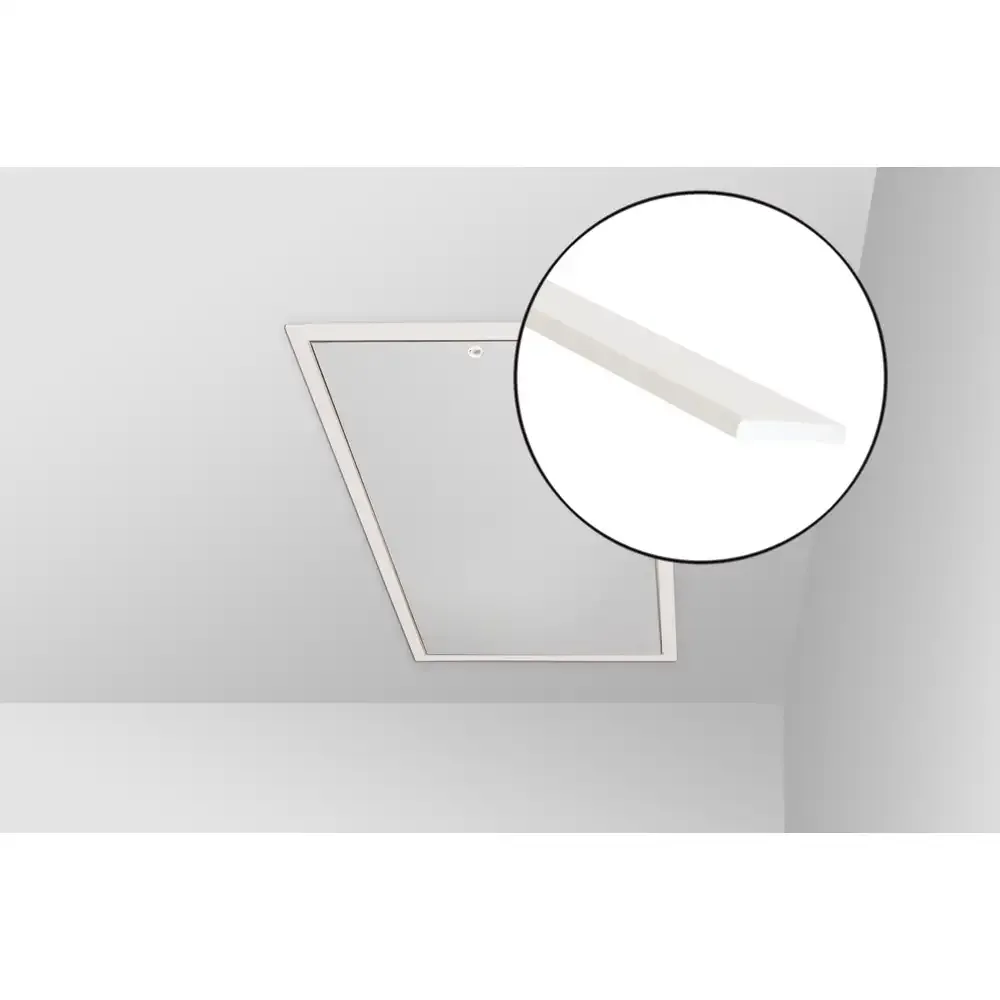

• LXL-W wood trim / LXL-PVC white trim
• LXN box extension
• LXW upper hatch
• LXK installation brackets
