Premium Deck Mounted Fixed Skylight FX G31

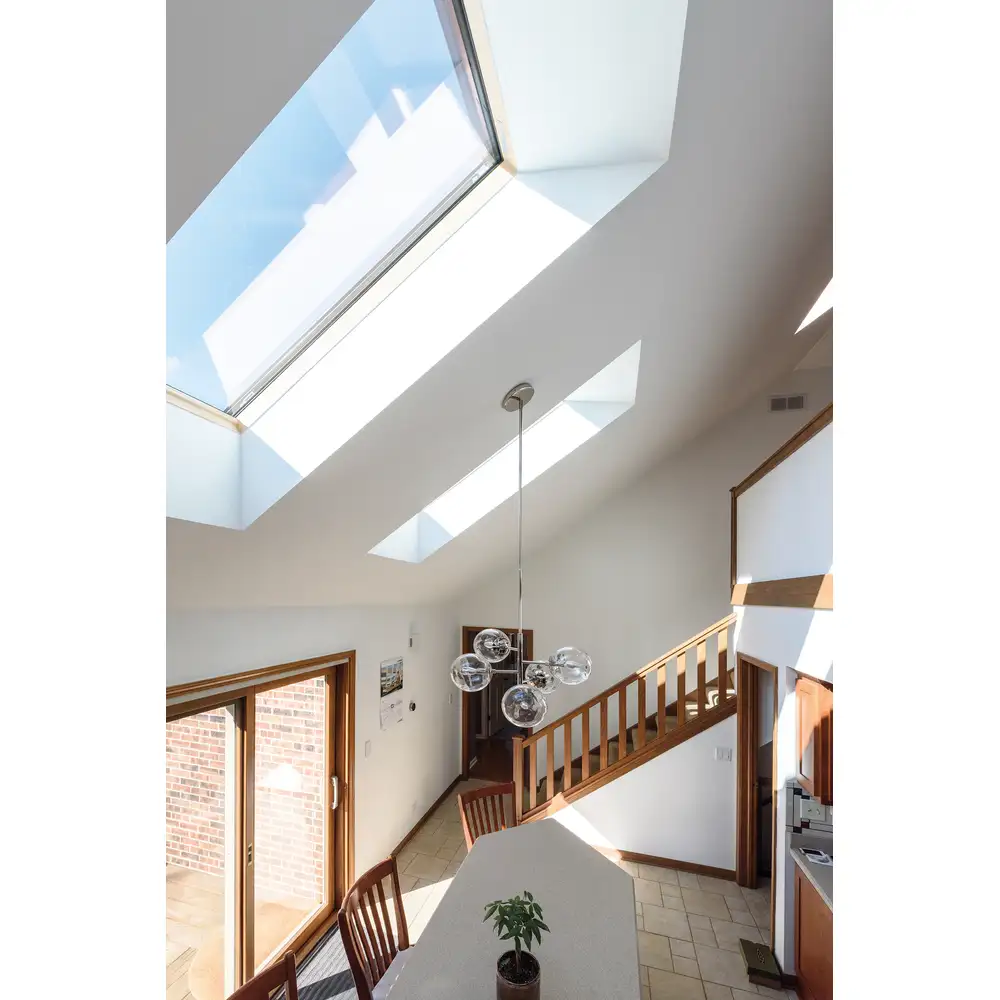

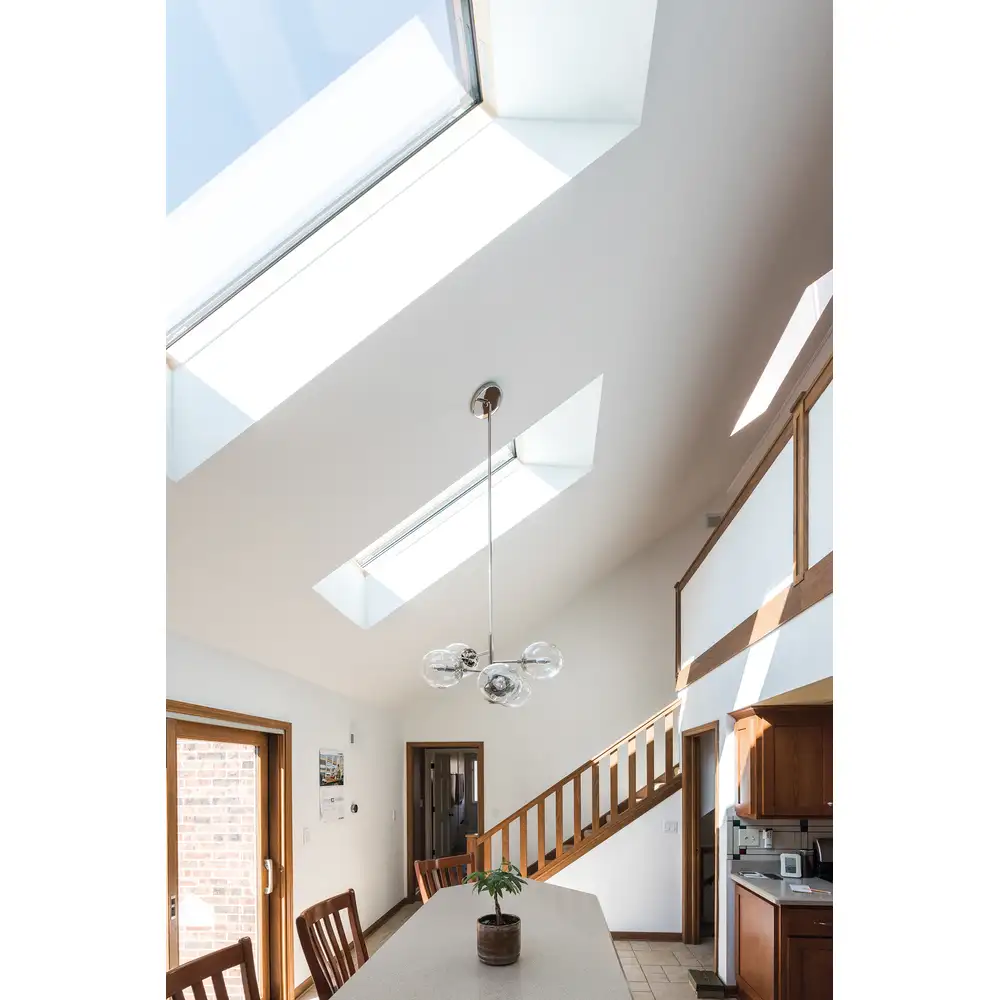

The FX is a deck-mounted fixed skylight designed to maximize natural daylight while providing long-term durability and thermal performance. Built with high-quality vacuum-treated timber and featuring heat-reflecting laminated glazing, it offers a reliable solution for brightening up interior spaces — especially where skylights are installed in high ceilings.

Key features of the FX fixed skylight include:

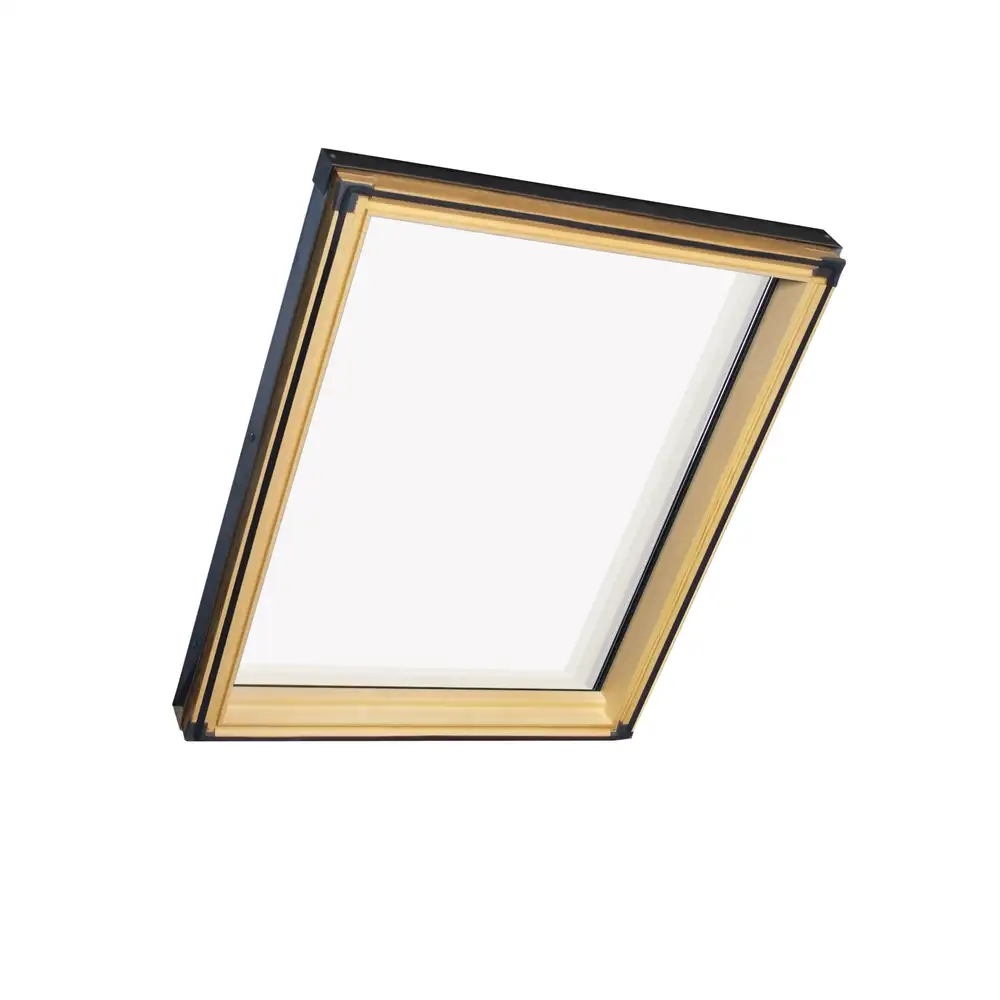

• Natural Wood Frame: Made from hand-selected pine, pressure-treated and finished with two layers of ecological acrylic lacquer in a natural wood tone.
• High Performance Glazing: Equipped with the G31 glazing unit – double-pane, low-emission, tempered-laminated glass with warm spacer and argon gas fill (U-factor: 0.39, SHGC: 0.23).
• Condensation Protection: Triple-seal gasket system and perimeter gasket under the frame enhance insulation and help prevent moisture build-up.

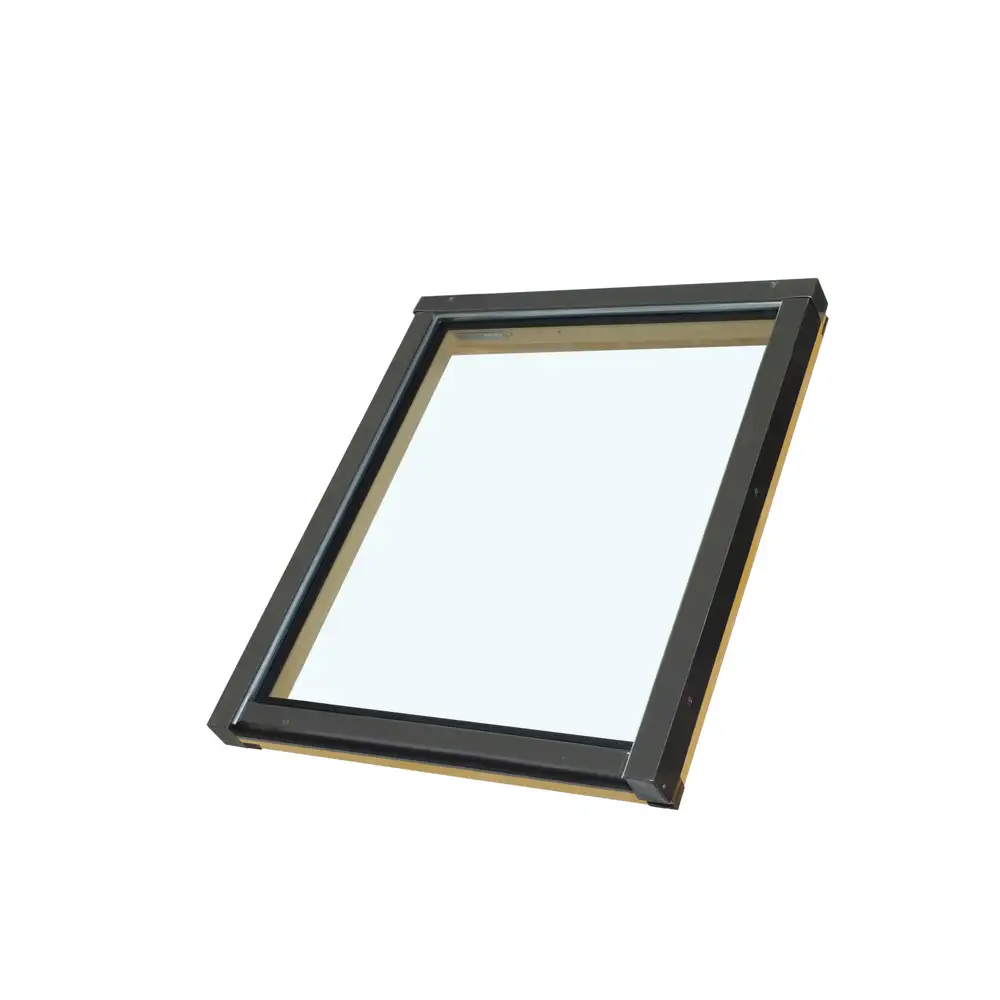

• Durable Cladding: Exterior aluminum cladding in RAL 7022 with a UV-resistant polyester coating.
• Bracket-Free Installation: Simple deck-mount system enables fast and secure installation without additional brackets.
• Flexible Application: Suitable for roof pitches between 15° and 85°. Designed for use at altitudes up to 3,000 ft above sea level.
• Wide Range of Sizes: Available in standard and replacement sizes

What's in the Box:

• Skylight
• Mounting screws

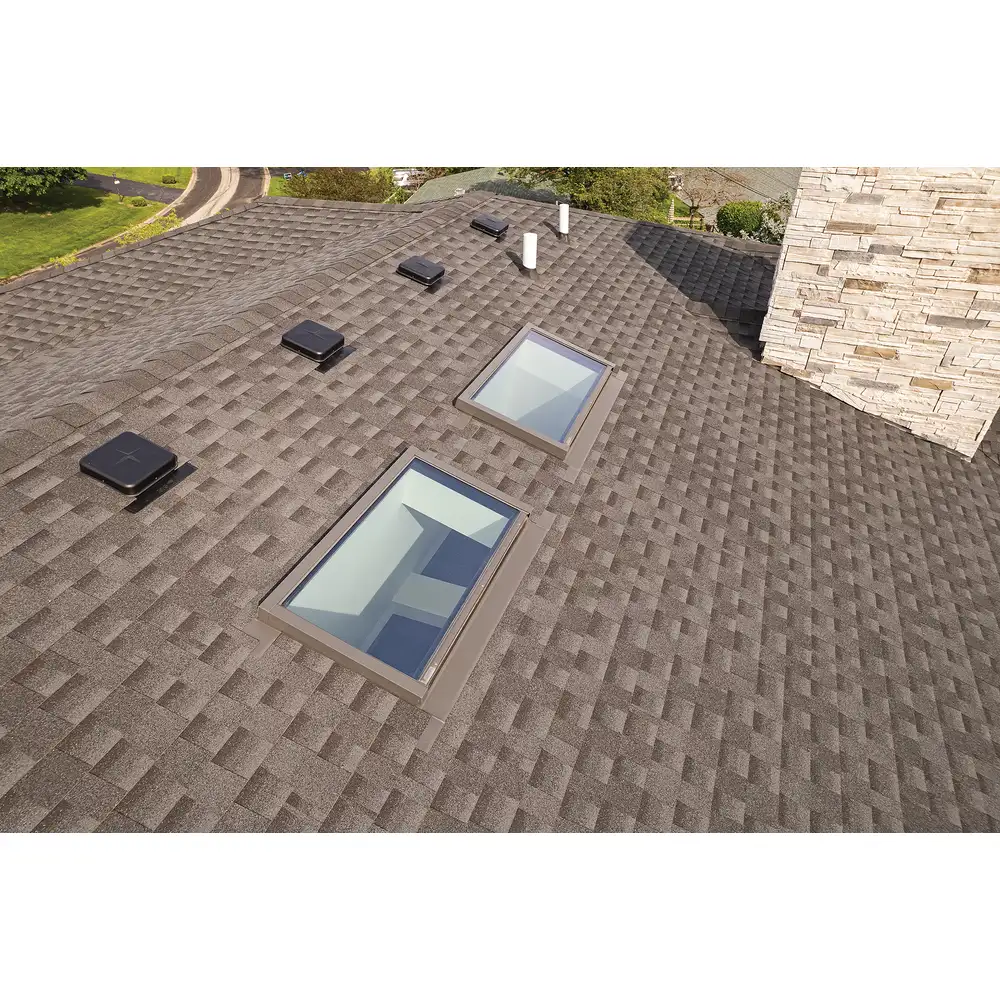

Flashings are required and must be selected based on roof type:

• EH-A flashing – for tile, standing seam, and corrugated metal roofs
• EL flashing – for shingles and shakes

Optional accessories include SMZ solar blinds, SRF blackout blinds, and light-reducing blinds. The FX skylight is backed by a 10-year warranty for both the frame and glazing unit, including a 20-year hail damage warranty on laminated glass (subject to limitations specified in the product warranty terms).
