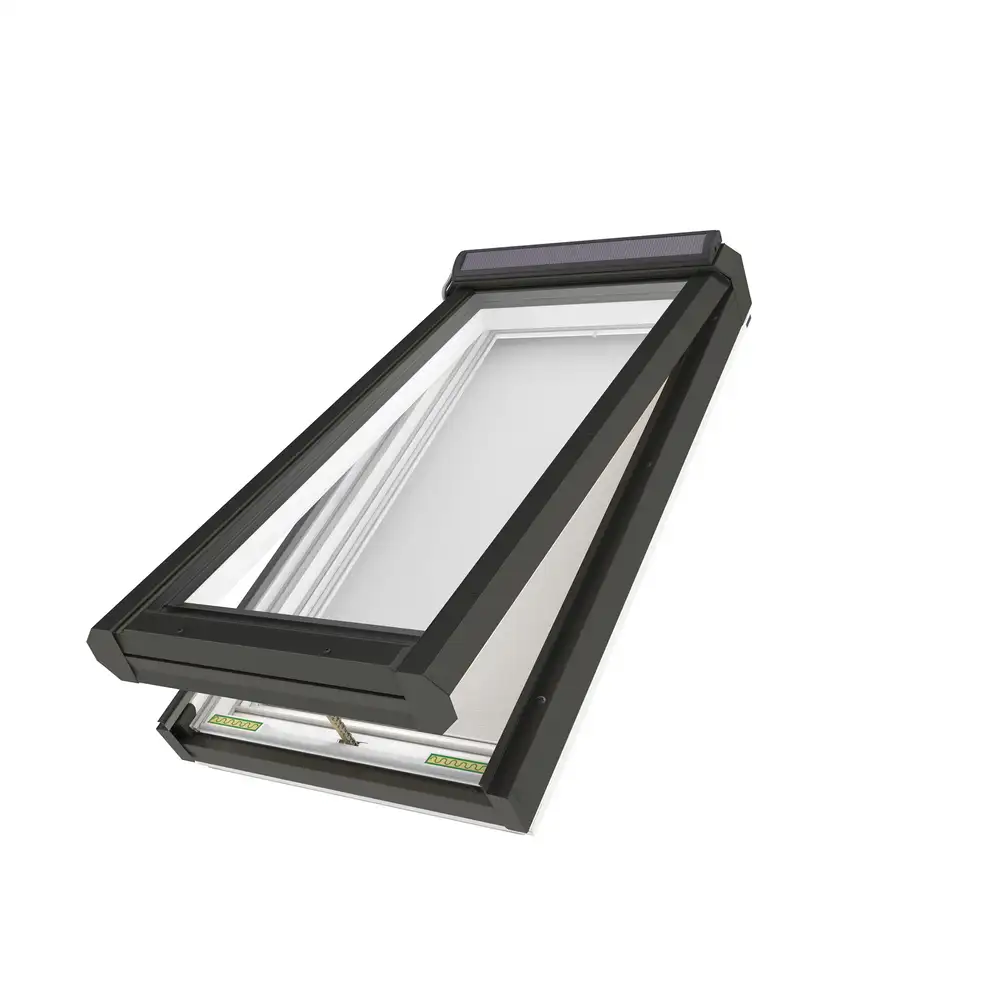

The FVS is a deck-mounted solar venting skylight offering automatic ventilation, thermal performance, and energy independence. Powered by an integrated solar panel and equipped with a Z-Wave radio control system, it’s ideal for out-of-reach installations or homes seeking a smart, wire-free skylight solution. A built-in rain sensor automatically closes the sash during wet weather for added protection.
Key features of the FVS solar skylight include:
- White Acrylic Frame: Durable, low-maintenance white acrylic frame designed to blend seamlessly with modern interiors.
- High Performance Glazing: Equipped with the G31 glazing unit – double-pane, low-emission, tempered-laminated glass with warm spacer and argon gas fill. In case of breakage, laminated glass fragments remain bonded to the interlayer (U-factor: 0.41, SHGC: 0.19).

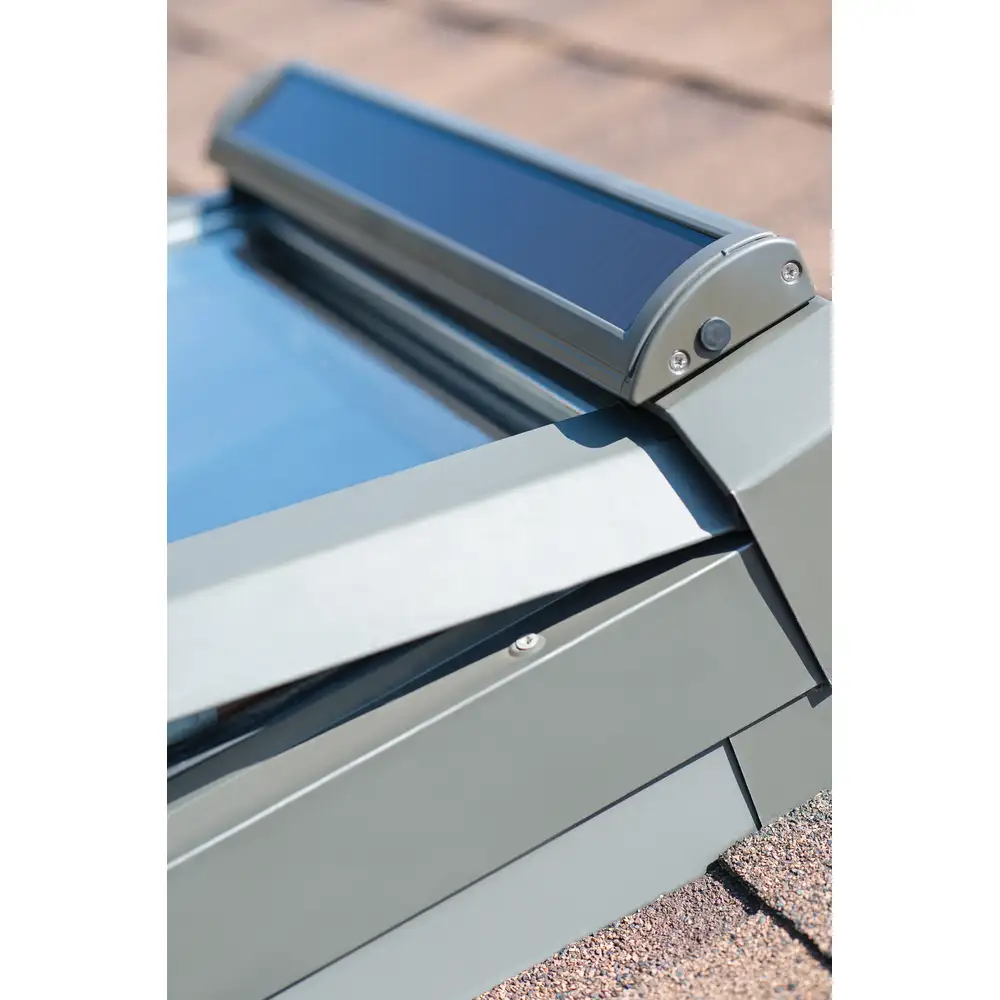

- Solar Powered Operation: Photovoltaic panel with integrated battery allows remote control operation with no hardwiring required.
- Z-Wave Smart Home Integration: Built-in Z-Wave module enables communication with compatible home automation systems.
- Automatic Rain Sensor: Automatically closes the skylight when rainfall is detected (sensor is inactive when skylight is closed).
- Insect Screen Included: Factory-installed mesh screen protects against insects.
- Condensation Protection: Triple-seal gasket system and perimeter gasket under the frame enhance insulation and moisture control.
- Durable Cladding: Exterior aluminum cladding in RAL 7022 with a UV-resistant polyester coating.
- Bracket-Free Installation: Simple deck-mount system enables fast and secure installation without additional brackets.
- Flexible Application: Suitable for roof pitches between 15° and 85°. Designed for use at altitudes up to 3,000 ft above sea level.
What's in the Box:
- Skylight with solar panel, motor, and insect screen
- ZRH12 remote control – allows operation of the skylight and is compatible with optional FAKRO solar-powered accessories
- Mounting screws
Flashings are required and must be selected based on roof type:
- EH-A flashing – for tile, standing seam, and corrugated metal roofs
- EL flashing – for shingles and shakes
Optional accessories include SMZ solar blinds, SRF blackout blinds, and light-reducing blinds. The included ZRH12 remote control can operate both the skylight and any additional solar-powered accessories purchased separately. The FVS skylight is backed by a 10-year warranty for the frame and glazing, a 2-year warranty for the motor and electronics.
Compatibility:
| Item number | 80HZ36 | 80HZ37 | 80HZ38 | 80HZ39 | 80HZ40 | 80HZ42 | 80HZ43 | 80HZ44 | 80HZ46 | 80HZ48 |
| Size | 21 x 26 ⅞ | 21 x 37 ⅞ | 21 x 45 ¾ | 21 x 54 ⁷⁄₁₆ | 21 x 70 ¼ | 30 ¹⁄₁₆ x 37 ⅞ | 30 ¹⁄₁₆ x 45 ¾ | 30 ¹⁄₁₆ x 54 ⁷⁄₁₆ | 44 ¼ x 26 ⅞ | 44 ¼ x 45 ¾ |
| Rough opening (WxR) | 21 x 26 ⅞ | 21 x 37 ⅞ | 21 x 45 ¾ | 21 x 54 ⁷⁄₁₆ | 21 x 70 ¼ | 30 ¹⁄₁₆ x 37 ⅞ | 30 ¹⁄₁₆ x 45 ¾ | 30 ¹⁄₁₆ x 54 ⁷⁄₁₆ | 44 ¼ x 26 ⅞ | 44 ¼ x 45 ¾ |
| Frame external size (SxL) | 23 ⅛ x 28 | 23 ⅛ x 39 | 23 ⅛ x 46 ⅞ | 23 ⅛ x 55 ½ | 23 ⅛ x 71 ⅜ | 32 ⅛ x 39 | 32 ⅛ x 46 ⅞ | 32 ⅛ x 55 ½ | 46 ¼ x 28 | 46 ¼ x 46 ⅞ |
