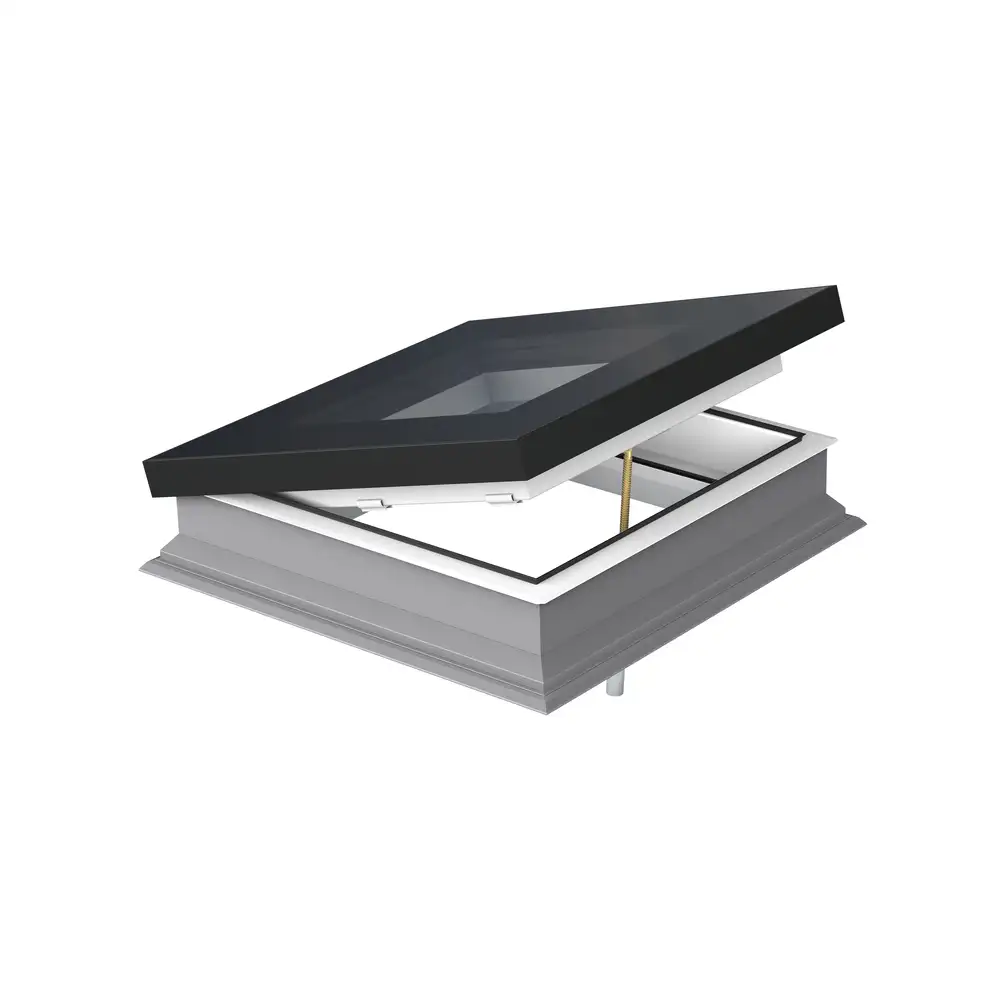

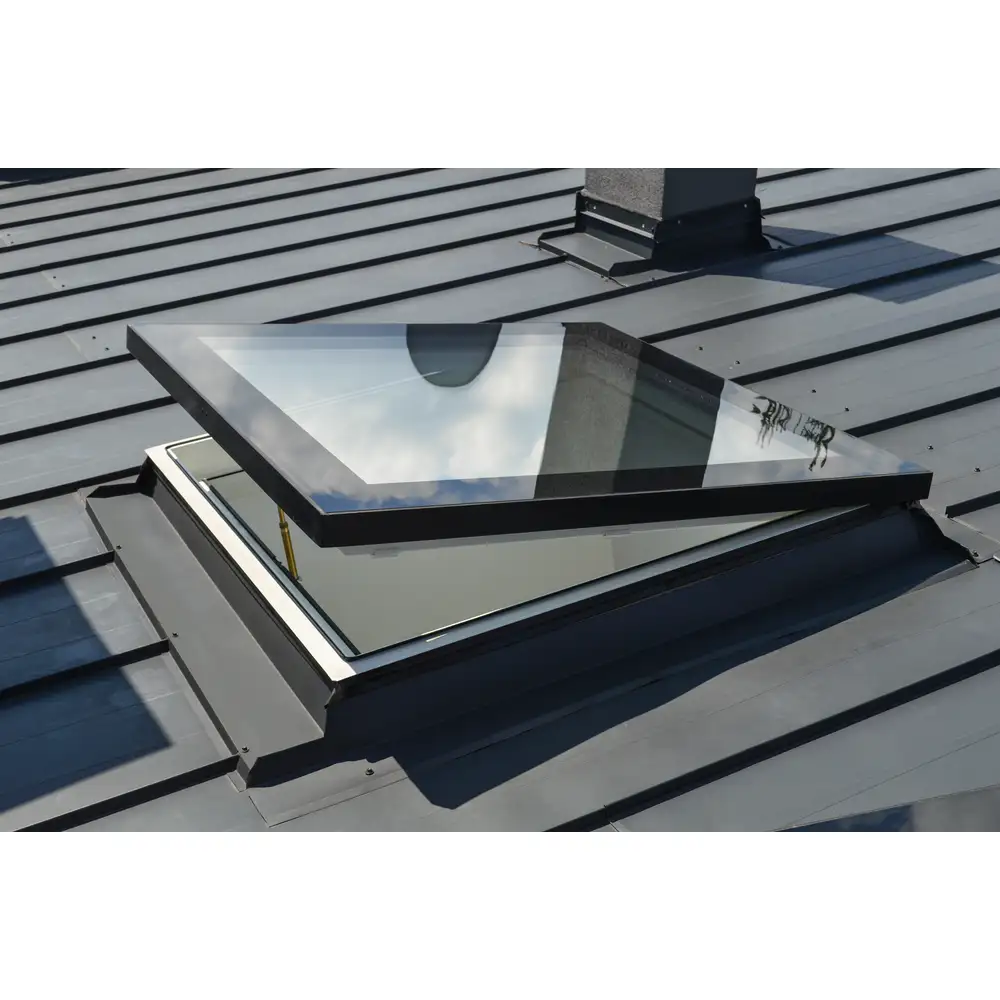

DMF DU6 manually operated flat roof deck mounted skylight

Innovative flat roof window characterised by excellent thermal performance and modern design.

Main features:

• The frame constructed of multi-chamber PVC profiles filled with insulation material.
• An abundance of natural light. The specially designed shape of the window profiles features glazing area up to 16%
  greater than those of competitors.
• Equipped with the DU6 double chamber highly energy-efficient glazing unit. The external glass is toughened and reflects the sun rays while the internal pane is anti-burglary class P2A. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film.
• The glazing unit is bonded using advanced manufacturing technologies to produce high durability and impeccable aesthetics.
• Very high class B fire resistance (EN 13501-1).
• The highest impact resistance class 5 (EN 14351-1).

• Opened manually by means of included control rod (86 5/8 in.). The sash tilts 11 7/8 inches.
• Windows can be mounted on an additional XRD or XRD/W base with a height of 6 inches to ensure installation in green
  or gravel roofs.
• Suitable for pitches from 2° - 15°.
• If the roof pitch is less than 2° or if it is advisable to increase the installation angle, the XRD/A angular installation base
  should be used, which fitted directly beneath the window lifts installation angle by 3 degrees.
• The structure of the window enables installation of internal as well as external accessories.
• Toughened external glass with lifetime hail resistance warranty.
