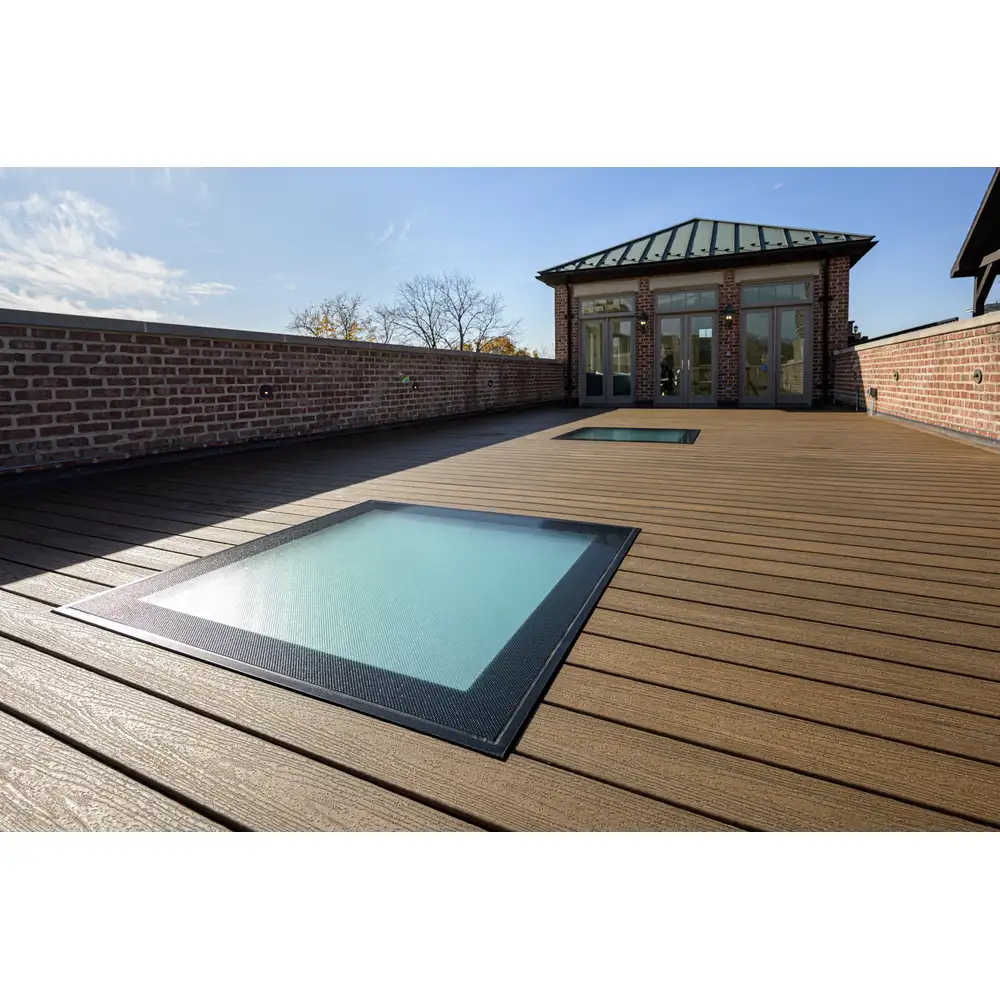

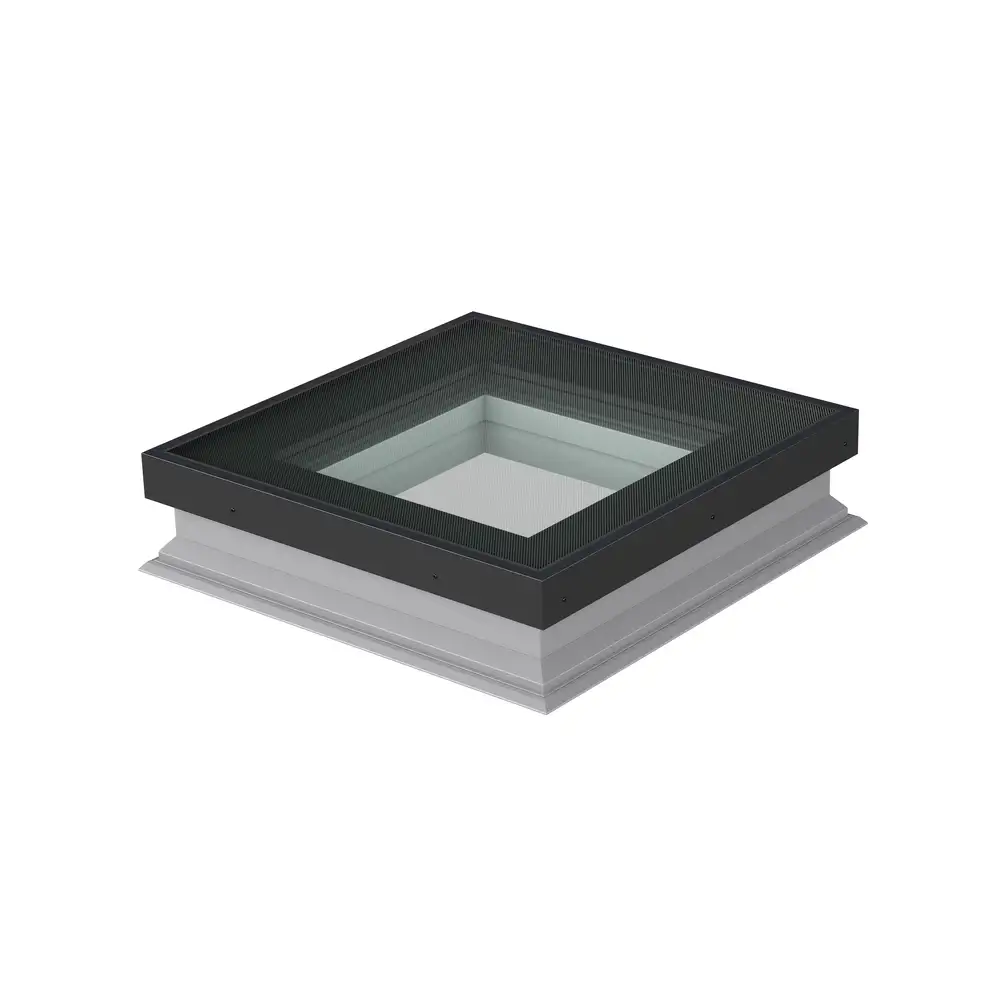

The FAKRO DXW DW6 Walkable Skylight is a fixed, non-opening walkable skylight for flat roofs. It is designed for roof terraces, rooftop patios, green roofs, and other flat roof areas with pedestrian access. The reinforced structure, anti-slip exterior glass surface, and high load capacity allow the skylight to be walked on while bringing natural daylight into the room below.
The DXW flat roof skylight is suitable for roof pitches from 0° to 15°. It is designed to integrate with the roofing membrane and finished roof surface for a clean, low-profile appearance. Aluminum termination bars are included to help secure the roofing membrane to the skylight frame.
The DW6 glazing unit features a toughened exterior pane and laminated interior pane for increased durability and safety. The insulated multi-chamber PVC frame helps improve thermal performance and reduce heat transfer through the roof opening.
Key Features of the DXW DW6 Walkable Skylight
- Walkable flat roof skylight – Designed for roof terraces, rooftop patios, green roofs, and flat roof areas with pedestrian access.
- Fixed, non-opening design – Provides natural daylight through the roof where ventilation is not required.

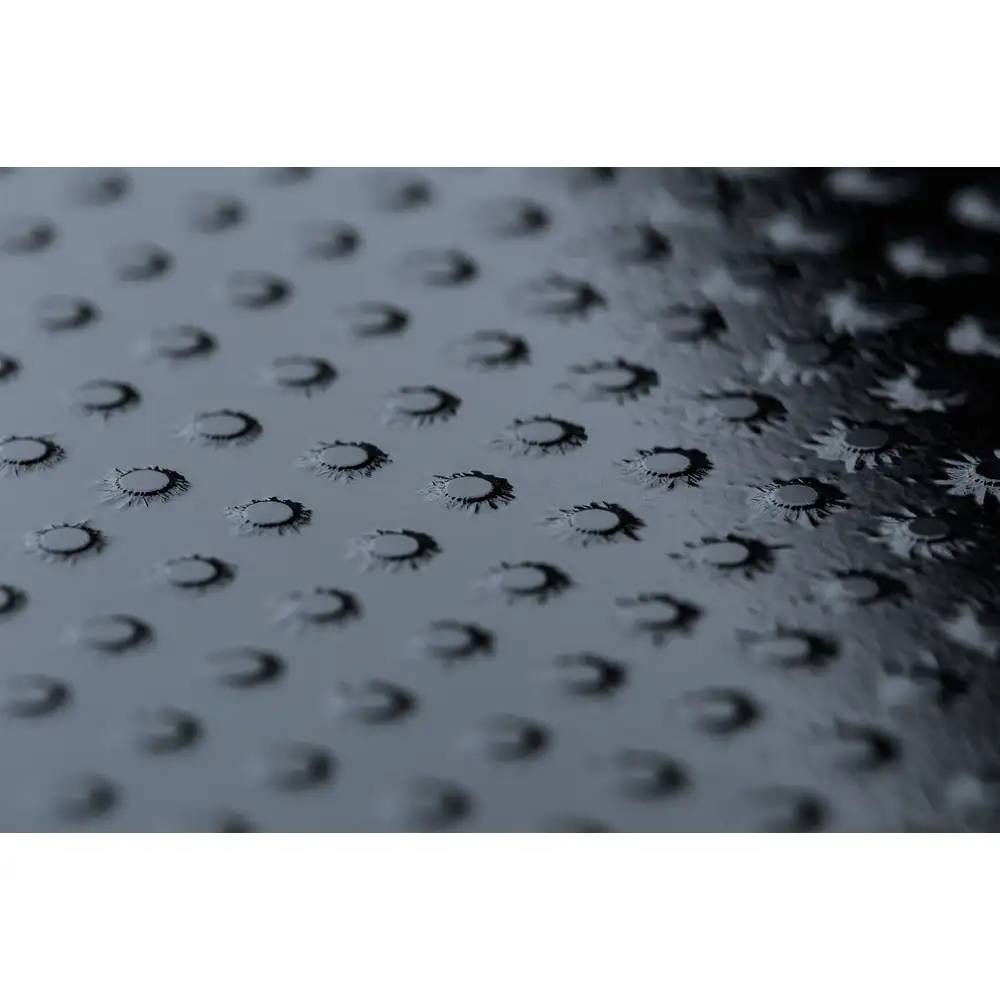

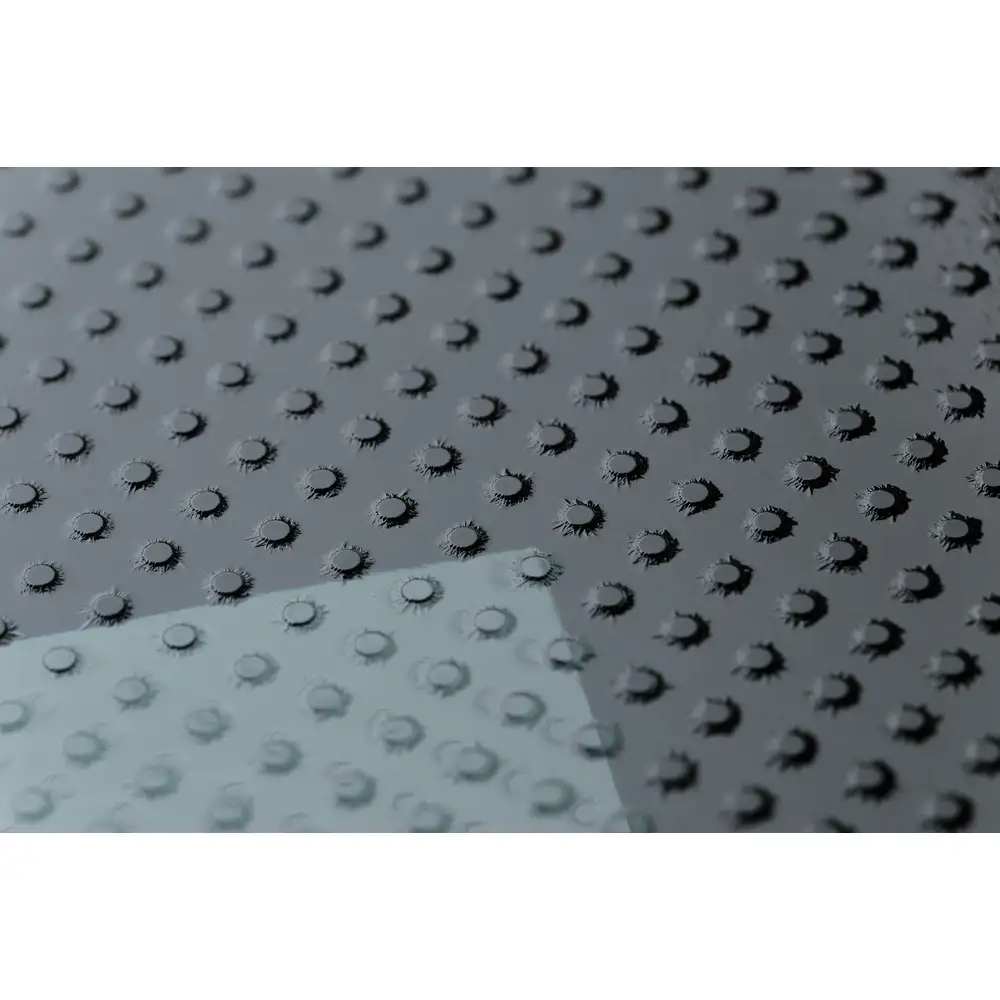

- Anti-slip exterior glass – Special coating helps improve traction on the walkable glass surface.
- High load capacity – Reinforced construction with load capacity of 102.5 psf.
- DW6 safety glazing – Toughened exterior pane and laminated interior pane provide increased durability and safety.
- Energy-efficient construction – Whole-window U-factor of 0.22 BTU/h·ft²·°F.
- Insulated PVC frame – Multi-chamber PVC profiles filled with insulation material help improve thermal performance.
- Low-profile roof integration – Designed to integrate with the finished roof surface for a clean, discreet appearance.
- Roof membrane connection – Aluminum termination bars are included to help secure the roofing membrane to the skylight frame.
- Low-slope roof application – Suitable for flat and low-slope roofs from 0° to 15°.
Performance Values
| Specification | Value |
| Window U-factor | 0.22 BTU/h·ft²·°F |
| Glazing U-factor | 0.18 BTU/h·ft²·°F |
| SHGC | 0.24 |
| Visible transmittance | 0.41 |
| Condensation resistance | 69 |
| Load capacity | 102.5 psf |
| Impact resistance | Class 5 – 950 mm |
| Wind load resistance | Class C5/B5 |
| Roof pitch | 0° to 15° |
Roof Membrane Compatibility
The DXW walkable skylight is designed for flat roof membrane applications and can be used with common flat roof covering systems, including TPO, PVC, EPDM, and torch-on roofing membranes.
Available Sizes
| Size | Rough Opening | Outside Frame |
| 30 x 30 | 29⅞ x 29⅞ in. | 39¼ x 39¼ in. |
| 30 x 36 | 29⅞ x 34¾ in. | 39¼ x 44⅛ in. |
| 36 x 36 | 34¾ x 34¾ in. | 44⅛ x 44⅛ in. |
| 36 x 48 | 34¾ x 46⅝ in. | 44⅛ x 55⅞ in. |
| 48 x 48 | 46⅝ x 46⅝ in. | 55⅞ x 55⅞ in. |
What's in the Box
- DXW DW6 walkable flat roof skylight
- Aluminum termination bars
- Installation screws
- Installation manual
Optional Accessories
Compatible internal accessories include ARF/D blackout blinds, ARF/D Z-Wave blackout blinds, and APF/D pleated blinds. Optional XRD/W installation bases may be used when additional installation height is required. Accessories are sold separately.
Warranty
The DXW skylight is covered by a 5-year limited skylight warranty. Laminated glass panes are covered by a 20-year hail damage warranty, and the glass seal is covered by a 10-year warranty against seal failure, subject to the limitations specified in the product warranty terms.
Professionals recommend
DRL roof hatch for flat roofs
$2,631.00

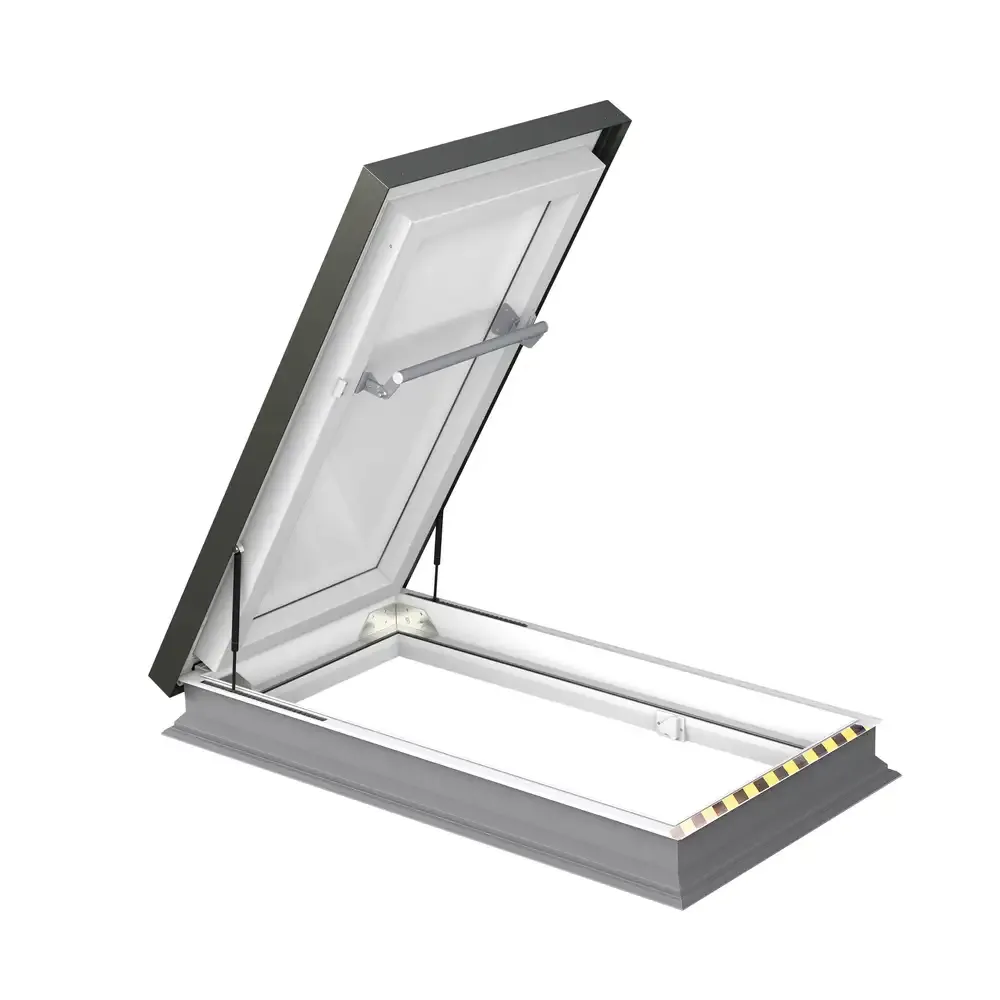

Flat roof access door DRL
$2,326.00

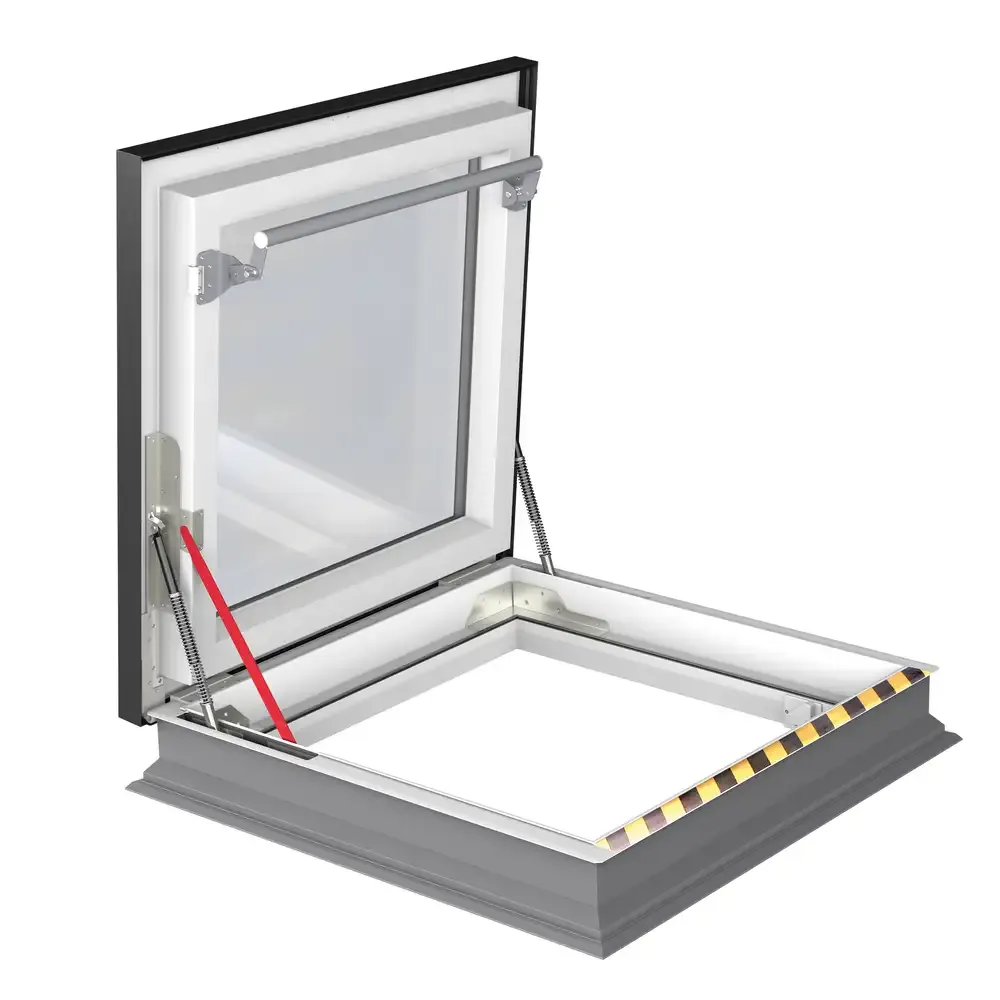

DRF DU6 flat roof access skylight
