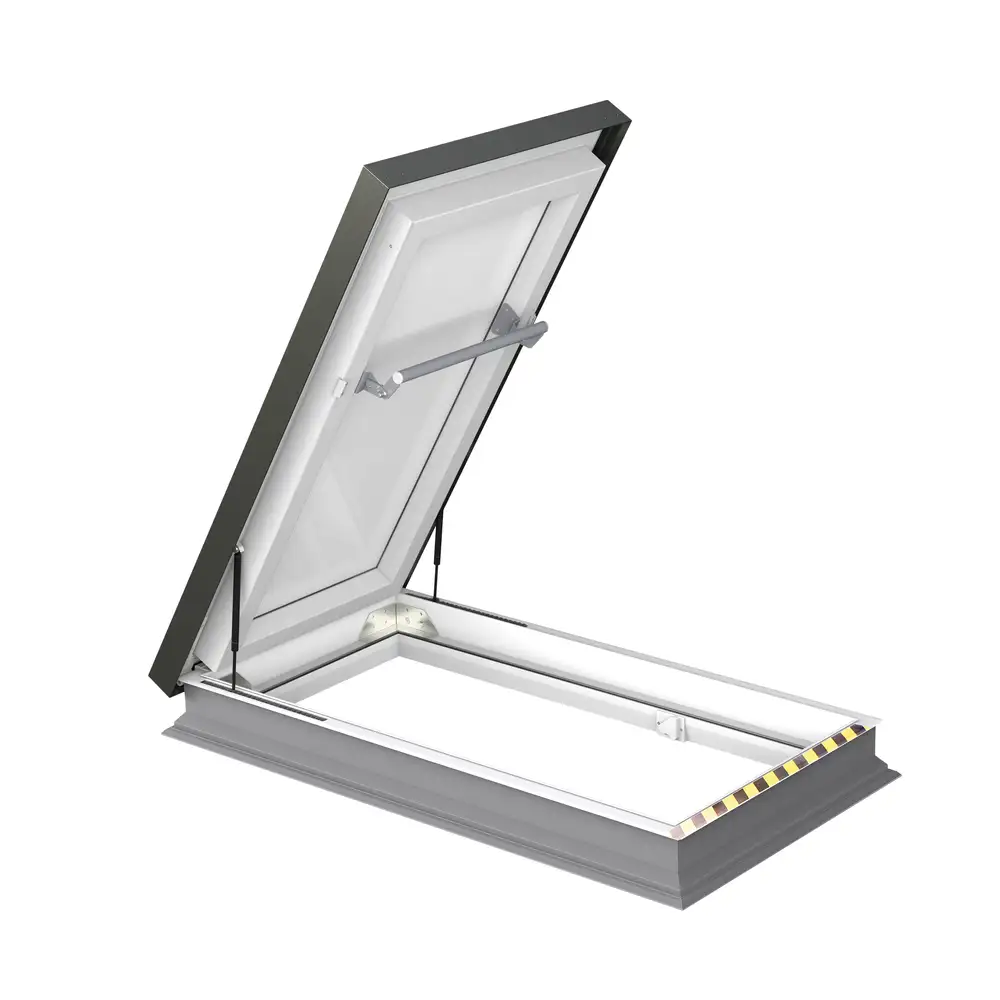

DRL roof hatch for flat roofs

The DRL Roof Hatch provides secure and thermally insulated access to flat roofs.

Key Features

• Suitable for roofs with a pitch between 0 and 5 degrees.
• Thermal performance with a R-value of 8.33.
• Piston-assisted hatch for easy opening.
• Hatch stays open between 60-degree angle
• Anti-slip tape on the frame for safe exit to the flat roof.
• Secure locking mechanism ensures reliable and safe latching.
• Internal color: white; External metal sheeting color: dark gray RAL 7022.
• Door construction features a layered PVC-XPS-PVC plate with a lightweight extruded polystyrene foam (XPS) core, covered on both sides with a hard layer of PVC and topped with aluminum sheeting.

What's in the box:

• Roof Hatch DRL.
• Installation kit (screws and termination bar)
• Installation manual.

Additional Notes:

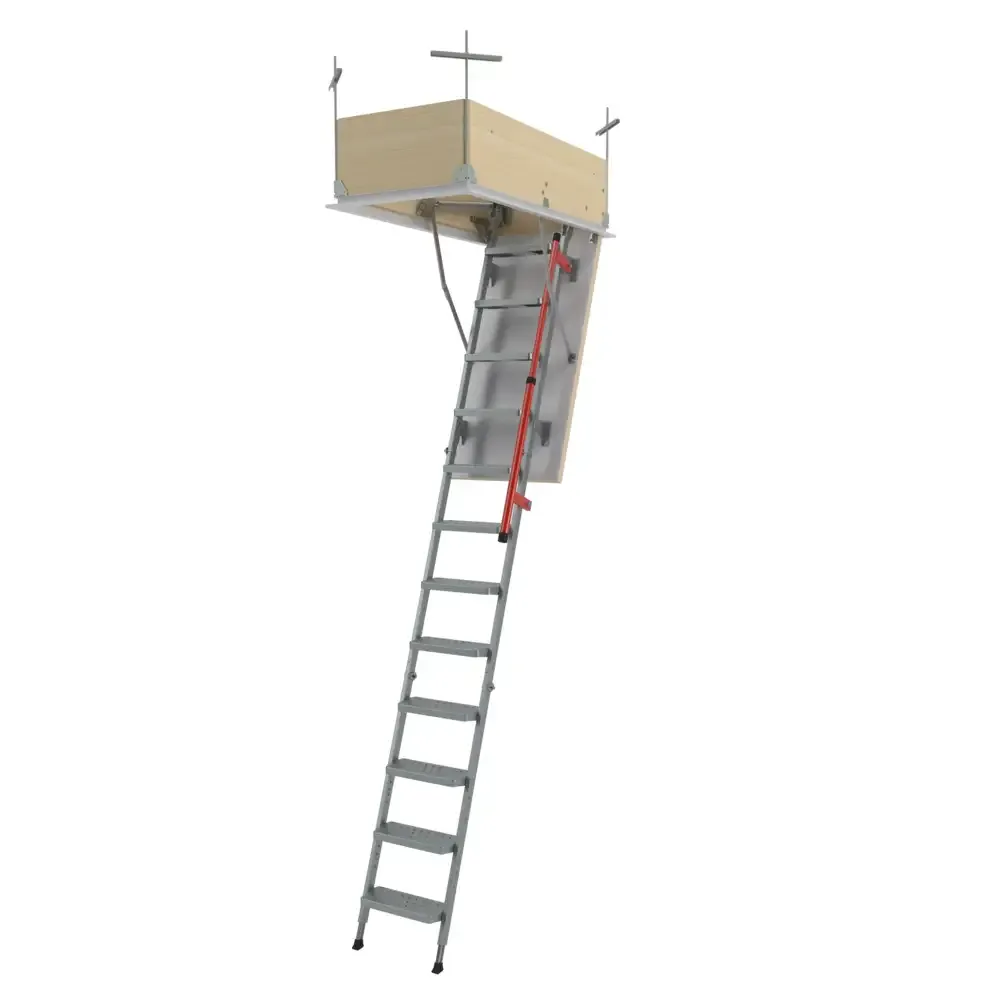

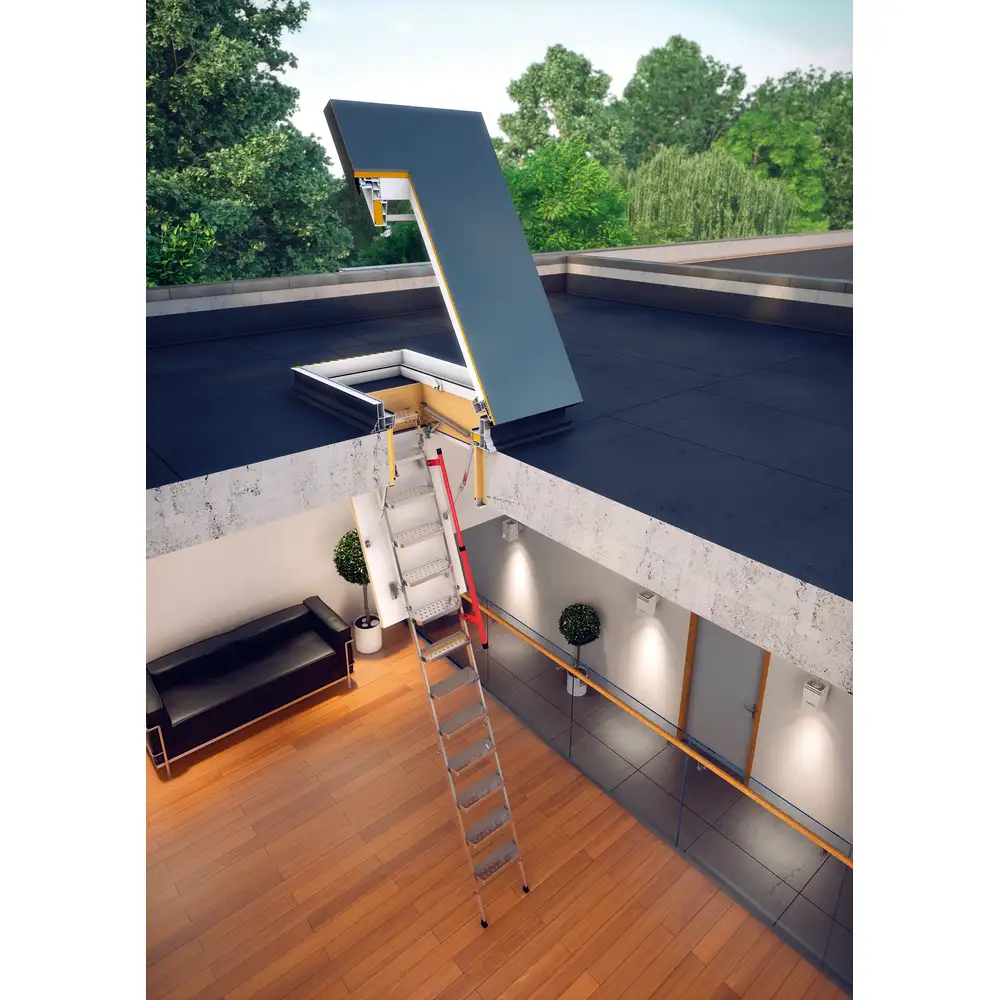

The DRL in the size 70x130cm can be installed in combination with LML attic ladders of the same size. This DRL size includes an extension (approximately 7.9 inches) to create an additional step at the roof surface for maximum comfort when used with LML attic ladders. Drawings for this setup can be found HERE

Warranty

General Warranty: For five (5) years from the date of purchase, FAKRO warrants that the product will be free from defects in material and workmanship under normal use and service. This does not apply to gas springs.

Gas Springs Warranty: For two (2) years from the date of purchase, FAKRO warrants that the gas springs will be free from defects in material and workmanship under normal use and service.
