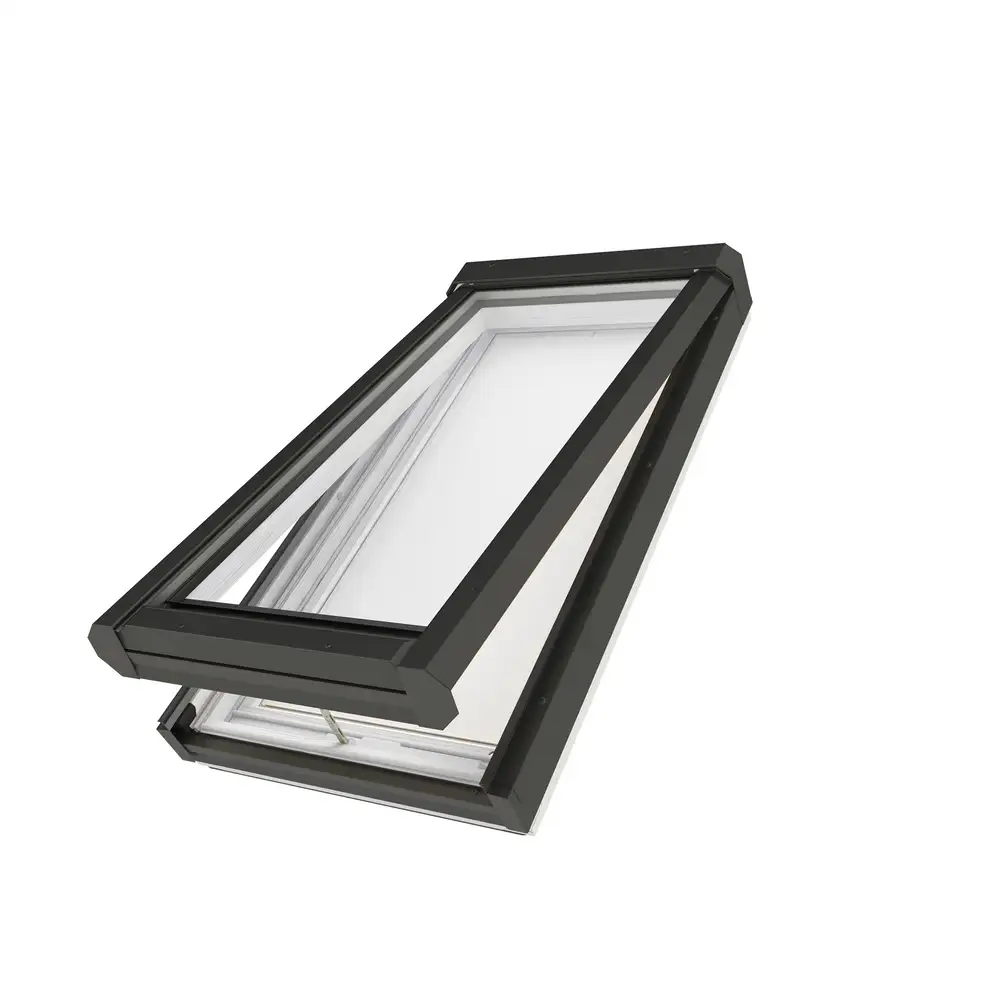

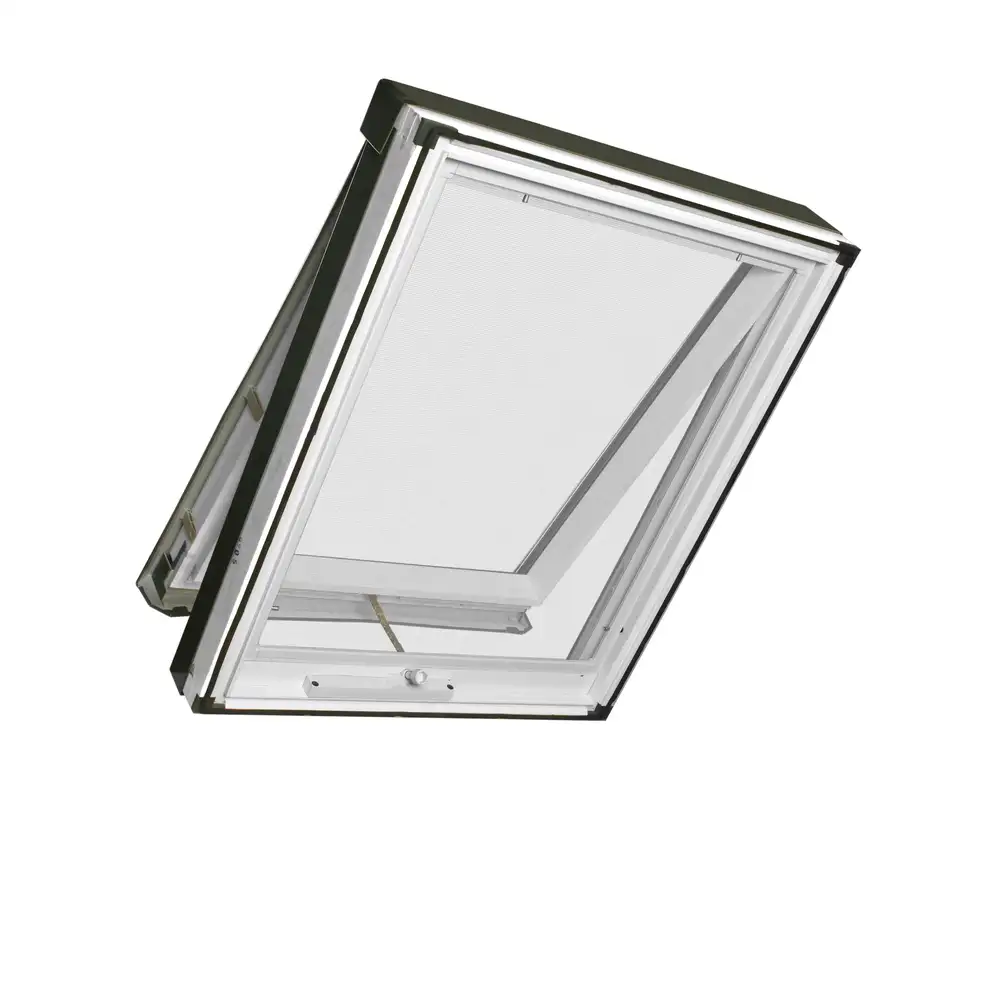

The FV is a deck-mounted manual venting skylight that provides natural ventilation, energy efficiency, and a clean, low-maintenance white interior finish. Operated by an included crank handle, it is ideal for spaces without electricity or where electrical devices are not preferred. A built-in insect screen allows the skylight to provide fresh air while keeping insects out. An optional telescopic control rod is available for out-of-reach installations.
Key features of the FV venting skylight include:
- White Acrylic Frame: Durable, low-maintenance white acrylic frame designed to blend seamlessly with modern interiors.
- High Performance Glazing: Equipped with the G31 glazing unit – double-pane, low-emission, tempered-laminated glass with warm spacer and argon gas fill. In case of breakage, laminated glass fragments remain bonded to the interlayer (U-factor: 0.41, SHGC: 0.19).
- Insect Screen Included: Factory-installed mesh screen protects against insects.
- Condensation Protection: Triple-seal gasket system and perimeter gasket under the frame enhance insulation and help reduce moisture build-up.
- Durable Cladding: Exterior aluminum cladding in RAL 7022 with UV-resistant polyester coating for long-lasting weather protection.
- Bracket-Free Installation: Simple deck-mount system enables fast and secure installation without additional brackets.
- Corrosion-Resistant Hardware: Fitted with Class 3 corrosion-resistant hinges for added durability.
- Flexible Application: Suitable for roof pitches between 15° and 85°. Designed for use at altitudes up to 3,000 ft above sea level.
What's in the Box:
- Skylight with integrated insect screen
- Crank handle
- Mounting screws
Flashings are required and must be selected based on roof type:
- EH-A flashing – for tile, standing seam, and corrugated metal roofs
- EL flashing – for shingles and shakes
Optional accessories include SMZ solar blinds, SRF blackout blinds, light-reducing blinds, and a telescopic control rod. The FV skylight is backed by a 10-year warranty for both the frame and glazing unit, including a 20-year hail damage warranty on laminated glass (subject to limitations specified in the product warranty terms).
Compatibility:
| Item number | 80HY36 | 80HY37 | 80HY38 | 80HY39 | 80HY40 | 80HY42 | 80HY43 | 80HY44 | 80HY46 | 80HY48 |
| Size | 21 x 26 ⅞ | 21 x 37 ⅞ | 21 x 45 ¾ | 21 x 54 ⁷⁄₁₆ | 21 x 70 ¼ | 30 ¹⁄₁₆ x 37 ⅞ | 30 ¹⁄₁₆ x 45 ¾ | 30 ¹⁄₁₆ x 54 ⁷⁄₁₆ | 44 ¼ x 26 ⅞ | 44 ¼ x 45 ¾ |
| Rough opening (WxR) | 21 x 26 ⅞ | 21 x 37 ⅞ | 21 x 45 ¾ | 21 x 54 ⁷⁄₁₆ | 21 x 70 ¼ | 30 ¹⁄₁₆ x 37 ⅞ | 30 ¹⁄₁₆ x 45 ¾ | 30 ¹⁄₁₆ x 54 ⁷⁄₁₆ | 44 ¼ x 26 ⅞ | 44 ¼ x 45 ¾ |
| Frame external size (SxL) | 23 ⅛ x 28 | 23 ⅛ x 39 | 23 ⅛ x 46 ⅞ | 23 ⅛ x 55 ½ | 23 ⅛ x 71 ⅜ | 32 ⅛ x 39 | 32 ⅛ x 46 ⅞ | 32 ⅛ x 55 ½ | 46 ¼ x 28 | 46 ¼ x 46 ⅞ |
