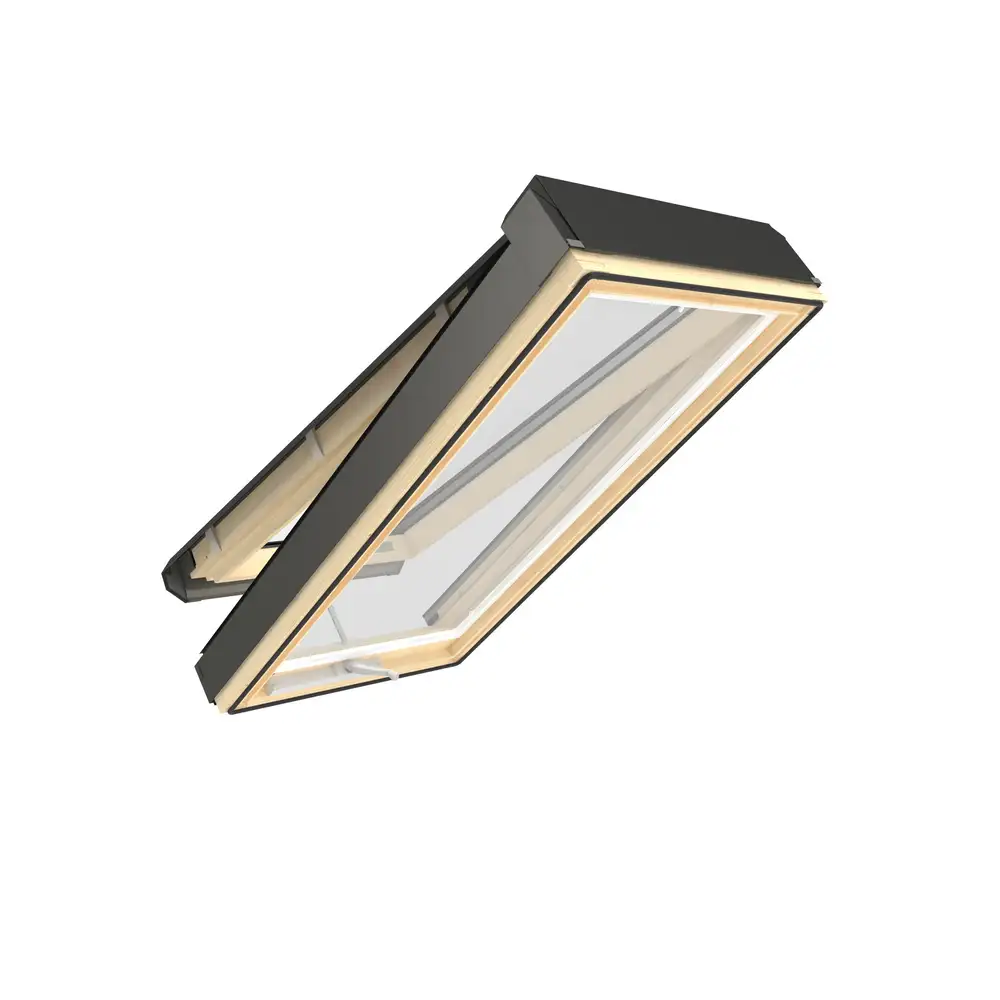

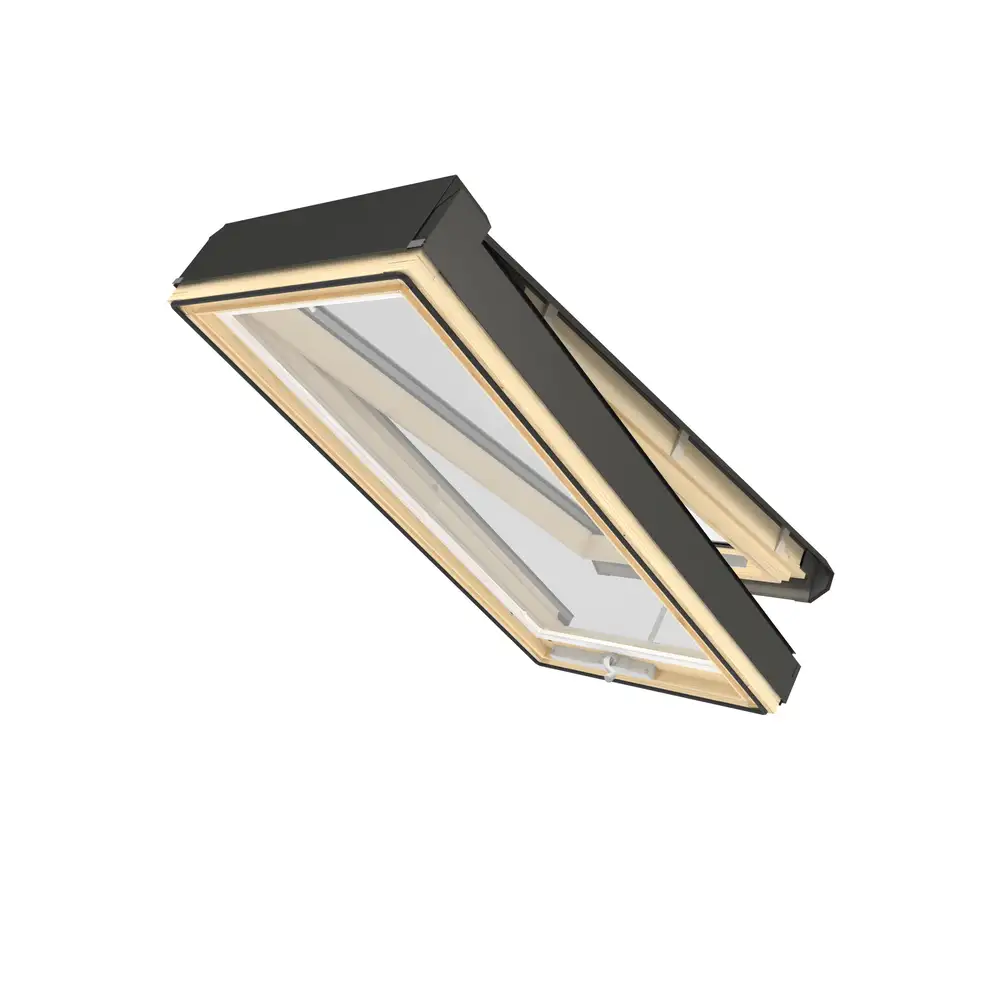

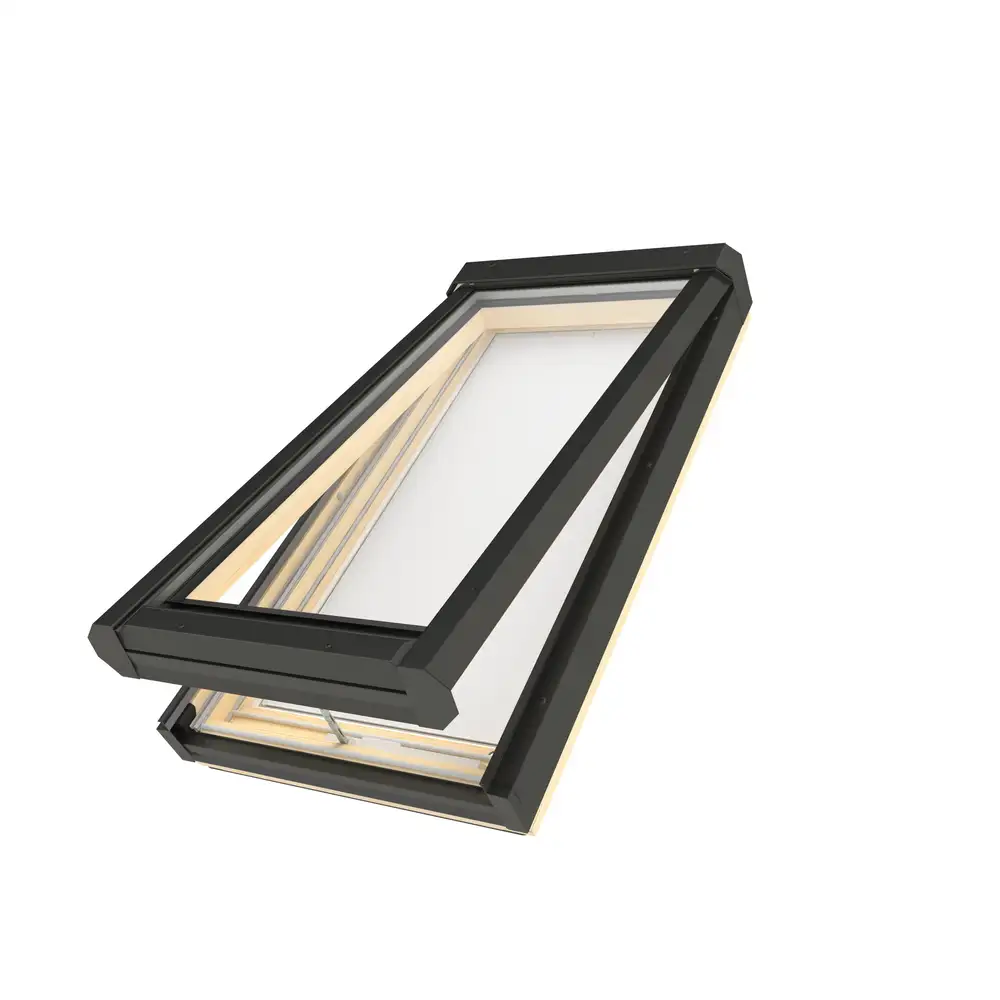

Premium Deck Mounted Manual Venting Skylight FV G31

The FV G31 is a deck-mounted manual venting skylight designed to bring natural light and fresh air into the room. It is operated with the included crank handle, making it a practical choice for applications where electric skylight operation is not required.

The skylight features G31 Low-E glazing, a natural wood interior frame, an integrated insect screen, and durable exterior aluminum cladding. An optional telescopic control rod is available separately for out-of-reach installations, allowing the skylight to be opened and closed manually from below.

Key Features of the FV G31 Manual Venting Skylight

• Manual Venting Operation: Opens and closes manually using the included crank handle. No electrical wiring is required.
• Optional Telescopic Control Rod: For skylights installed out of reach, an optional telescopic control rod is available separately. It allows the skylight to be operated manually from below when the crank handle cannot be used comfortably.
• Natural Wood Frame: Made from hand-selected pine, pressure-treated and finished with two layers of ecological acrylic lacquer in a natural wood tone.
• High Performance Glazing: Equipped with the G31 glazing unit – double-pane, low-emission, tempered-laminated glass with warm spacer and argon gas fill. In case of breakage, laminated glass fragments remain bonded to the interlayer (U-factor: 0.41, SHGC: 0.19).
• Insect Screen Included: Factory-installed mesh screen allows the skylight to remain open while helping keep mosquitoes and other insects out.
• Condensation Protection: Triple-seal gasket system and perimeter gasket under the frame enhance insulation and help prevent moisture build-up.
• Durable Cladding: Exterior aluminum cladding in RAL 7022 with UV-resistant polyester coating for long-lasting weather protection.
• Bracket-Free Installation: Simple deck-mount system enables fast and secure installation without additional brackets.
• Corrosion-Resistant Hardware: Fitted with Class 3 corrosion-resistant hinges for added durability.
• Flexible Application: Suitable for roof pitches between 15° and 85°. Designed for use at altitudes up to 3,000 ft above sea level.

What's in the Box

• FV G31 manual venting skylight with integrated insect screen
• Crank handle
• Mounting screws

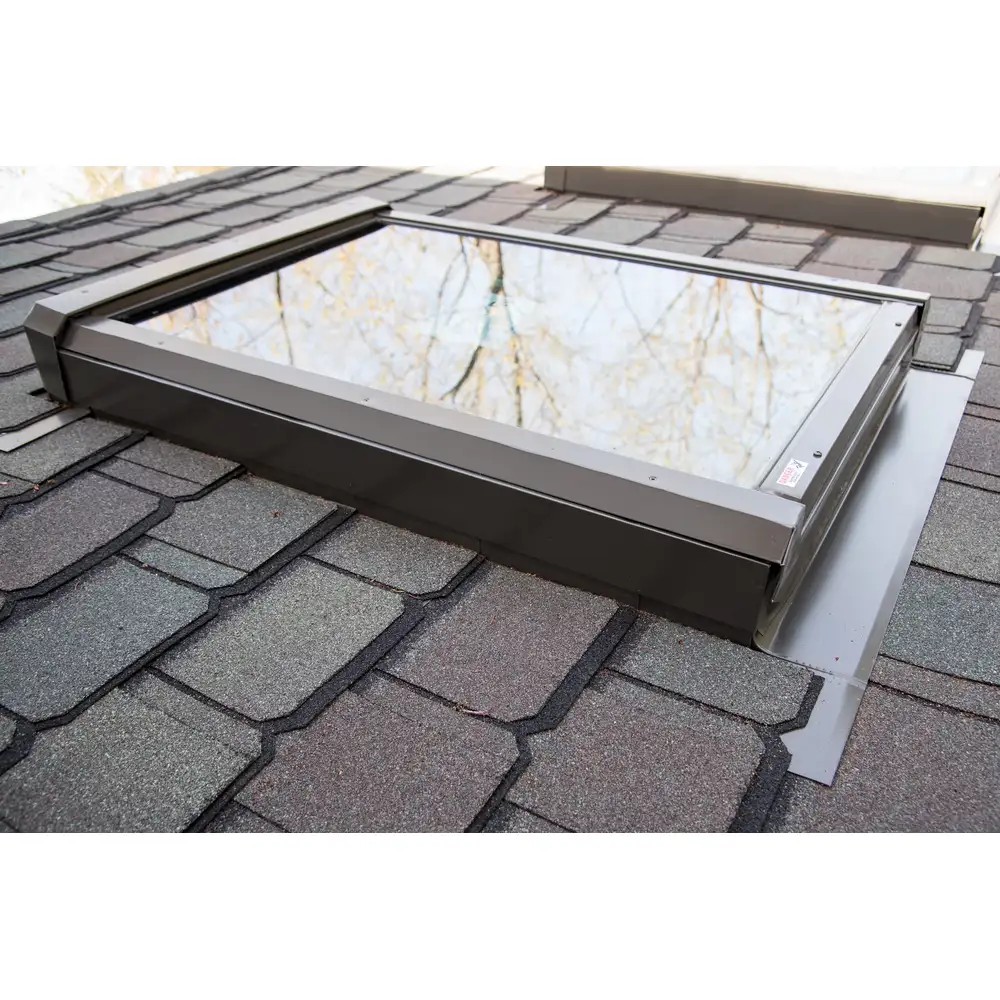

Flashing Information

Flashings are required and must be selected based on roof type:

• EH-A flashing – for tile, standing seam, and corrugated metal roofs
• EL flashing – for shingles and shakes

Optional Accessories

Optional accessories include SMZ solar blinds, SRF blackout blinds, light-reducing blinds, and a telescopic control rod for out-of-reach installations.

Warranty

The FV skylight is backed by a 10-year warranty for both the frame and glazing unit, including a 20-year hail damage warranty on laminated glass, subject to limitations specified in the product warranty terms.

Size Chart

Use the rough opening size to select the correct skylight size. Confirm the rough opening and frame external size before ordering.
